During operation, laser processing inevitably generates smoke and debris. These impurities tend to adhere to the protective lens and the nozzle. If left uncleaned for a long time, this accumulation can lead to laser power attenuation, incomplete cuts, poor engraving results, and even permanent damage to the lens.
- Focusing Lens: Located inside the module, it focuses the laser beam into a tiny spot to enhance cutting depth and engraving precision. It is one of the most critical optical components of the laser module.
- Nozzle: A small, cone-shaped component installed at the laser outlet. Its function is to concentrate the airflow to blow away smoke and debris, preventing them from entering the module.
- Protective Lens: Positioned between the nozzle and focusing lens, usually a transparent glass disc. It blocks dust and debris from entering the module, protecting the focusing lens. The protective lens is replaceable, making maintenance easier and reducing costs.
Tip: The protective lens acts as a barrier, keeping the focusing lens completely isolated from the external environment. During routine maintenance, you only need to clean the outer protective lens.
¶ 1. Prepare the Tools

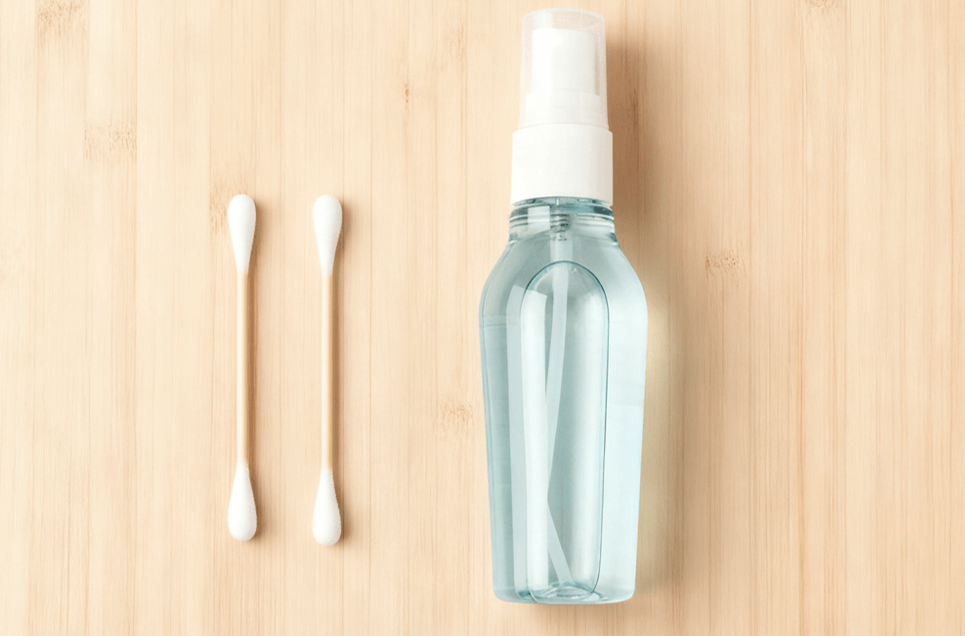

- Cotton swabs or tissues
- Alcohol
¶ 2. Cleaning Procedure
Power off the machine before cleaning!
¶ Step 1: Remove the Laser Module
Disconnect the air tubing and the laser module cable. |
Pull the locking lever DOWN to release the module, then gently lift the module out of the mount. |
¶ Step 2: Clean the Nozzle

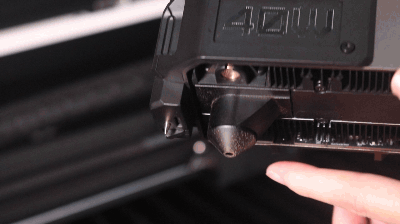

- Remove the nozzle (magnetic). Use a cotton swab dipped in alcohol to wipe the nozzle surface and clean any dust or residue from the inside.
¶ Step 3: Clean the Protective Lens
- Dip a fresh cotton swab into the alcohol. Gently wipe the protective lens until it is clean and clear.
¶ Step 4: Reinstall the Nozzle
- Reattach the nozzle to the laser module, then place the module back onto the X-axis mount.
¶ Step 5: Secure the Laser Module
Push the locking lever UP to lock the laser module in place. |
Reconnect the module cable first, followed by the air tubing. |
