The Device Self-Test program runs a series of checks to diagnose your machine. It helps you identify potential malfunctions and provides corresponding solutions.
¶ 1. Device Self-Test Operation

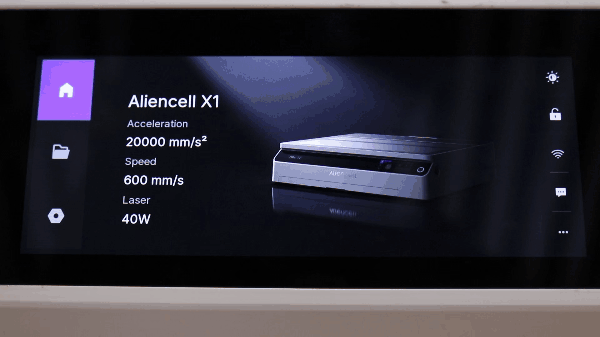

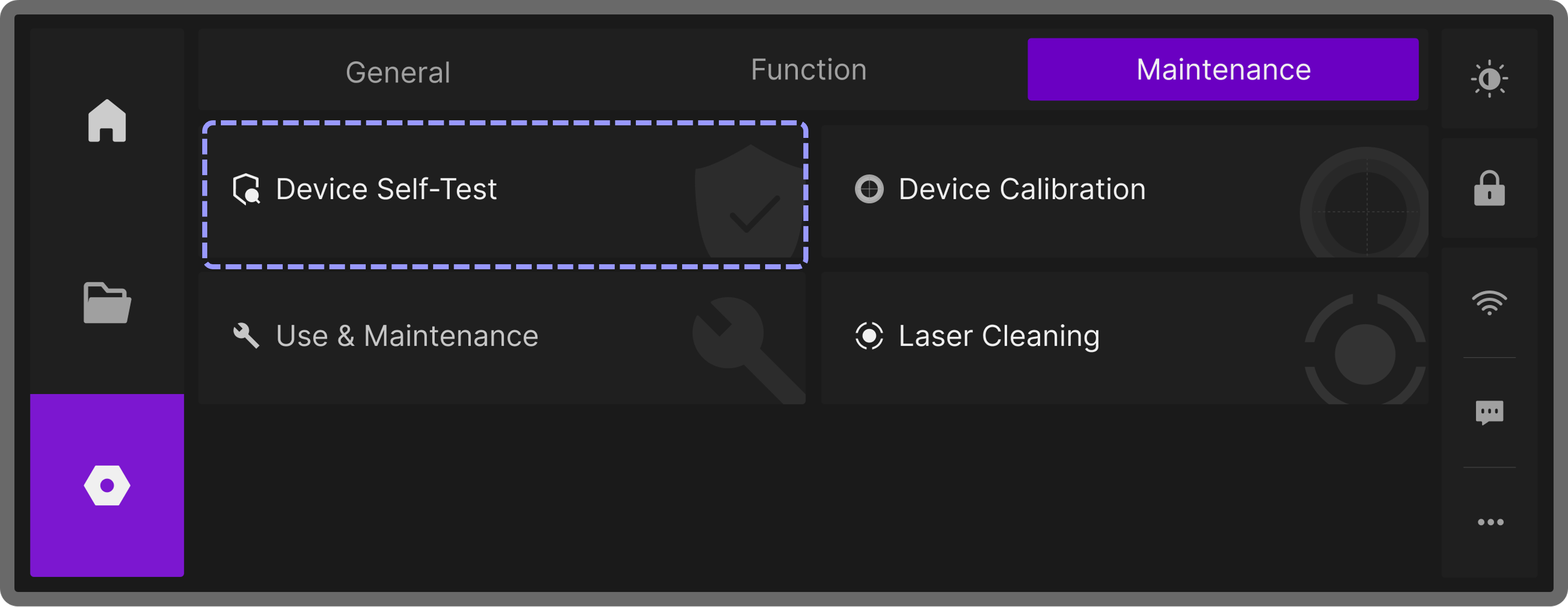

- Go to Maintenance and select Device Self-Test.
- A confirmation window will pop up. Click Start-Self-Test.
The Laser Module will first reset to its home position, then the device will automatically begin the self-test process.
¶ 2. Self-Test Items
| Module | Test Item | Details |
|---|---|---|
| Motor Check | Z-axis Module | Resets and checks whether the Z-axis module can move up and down properly. |
| Y-axis Module + Encoder | Resets and checks whether the Y-axis module and its feedback encoder are functioning correctly. | |
| X-axis Module + Encoder | Resets and checks whether the X-axis module and its feedback encoder are functioning correctly. | |
| Laser Module | Probe Module Connection | Checks if the Distance Sensor probe is correctly connected to the Laser Module. |
| Probe Deployment | Ensures the Distance Sensor probe extends smoothly for focusing detection. | |
| Probe Measurement | Verifies whether the focus measurement function is operating normally. | |
| Probe Retraction | Ensures the Distance Sensor probe retracts smoothly to avoid interference. | |
| Accelerometer | Checks whether the accelerometer in the Laser Module provides correct motion feedback. | |
| Laser Temperature Sensor | Verifies whether the internal temperature sensor of the Laser Module works properly. | |
| Laser Cooling Fan | Checks whether the cooling fan in the Laser Module operates normally. | |
| Sensor Check | Left Positioning Camera | Verifies if the left Positioning Camera can capture images properly. |
| Right Positioning Camera | Verifies if the right Positioning Camera can capture images properly. | |
| Exhaust Fan | Checks whether the Exhaust Fan operates correctly during processing. | |
| Machine Monitoring Camera | Verifies if the internal Machine Monitoring Camera can stream video in real time. | |
| Flame Detection Sensor | Ensures the Flame Detection Sensor can correctly identify flame signals. | |
| PM10 Display Panel | Checks whether the PM10 sensor can collect particle data properly. | |
| Camera Calibration | Checks whether the Positioning Camera can perform calibration correctly |
