¶ 1. Test Notes
Use the following data as the maximum cutting capacity test record for the three X1 laser modules:
- Maximum cutting capacity: The maximum material thickness completed under the test conditions.
- Power: Unless noted otherwise, each test uses the rated power of the corresponding laser module.
- Focus offset: The distance that the focal point is lowered into the material before cutting.
Tips: Actual cutting results may vary with material density, moisture content, adhesive layers, bed flatness, smoke extraction, and lens cleanliness. Always run a small test cut before batch production.
| Material | Maximum Capacity | Image |
|---|---|---|

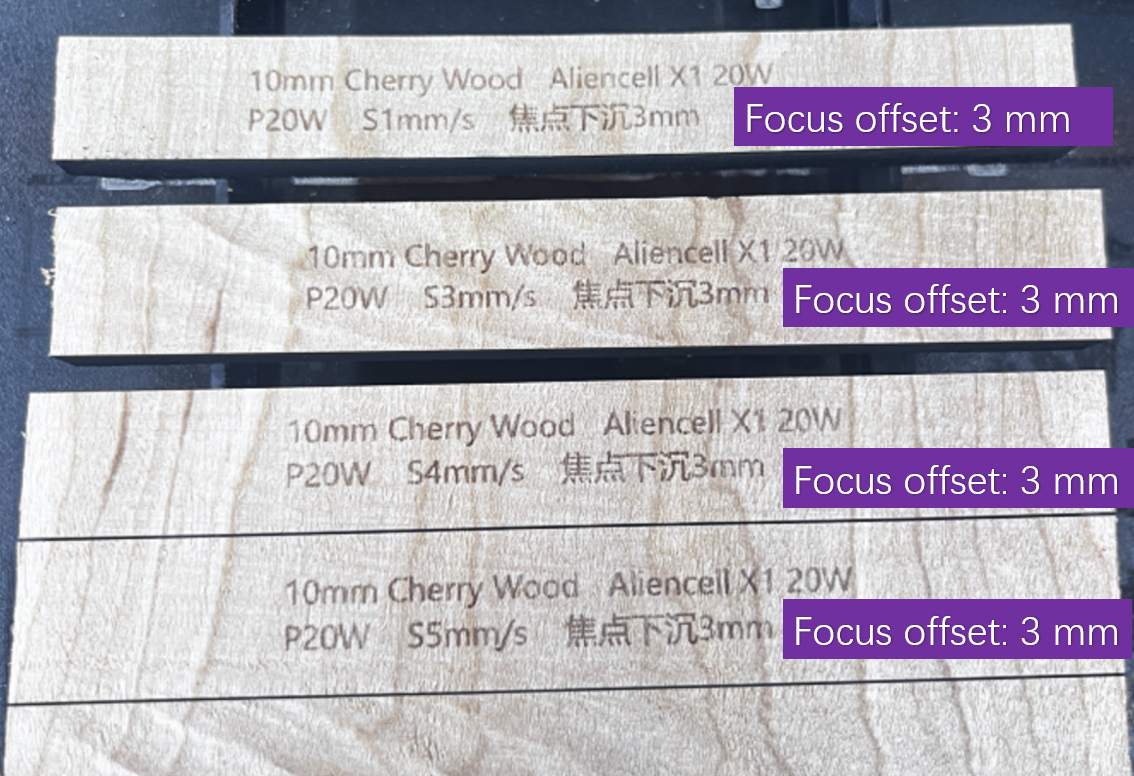

| Cherry Wood | Thickness: 10 mm / 0.39 in Speed: 3 mm/s Power: 20W Focus offset: 3 mm / 0.12 in |
 |

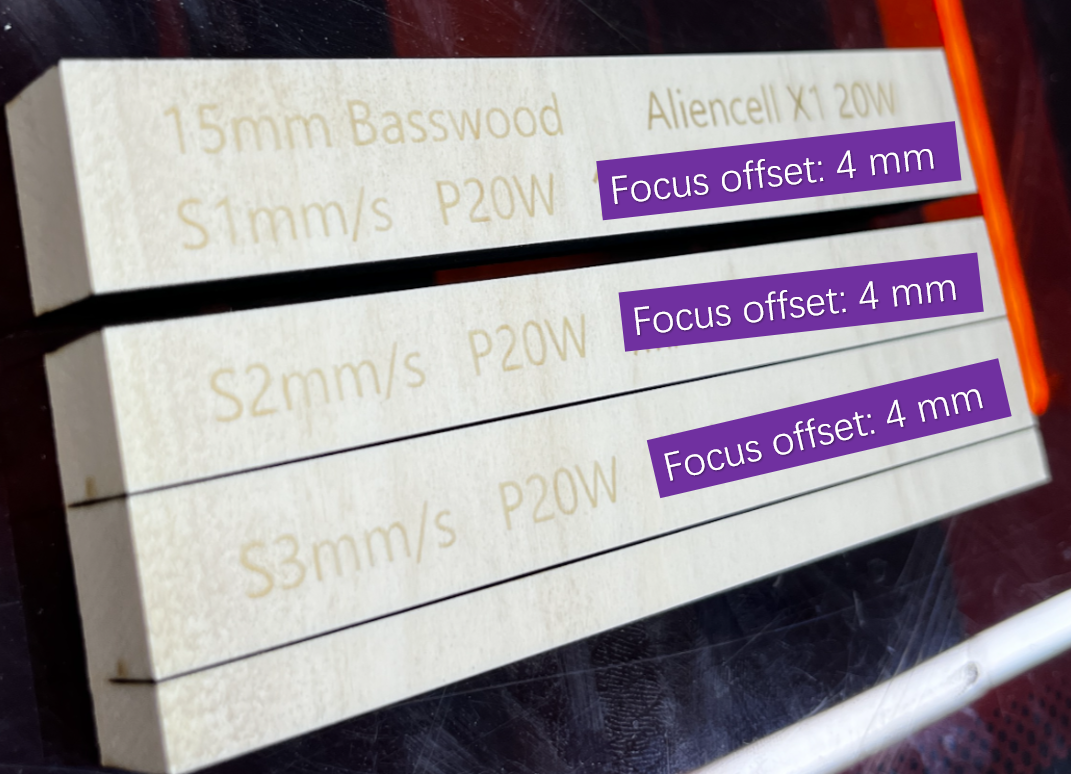

| Basswood | Thickness: 15 mm / 0.59 in Speed: 1 mm/s Power: 20W Focus offset: 4 mm / 0.16 in |
 |

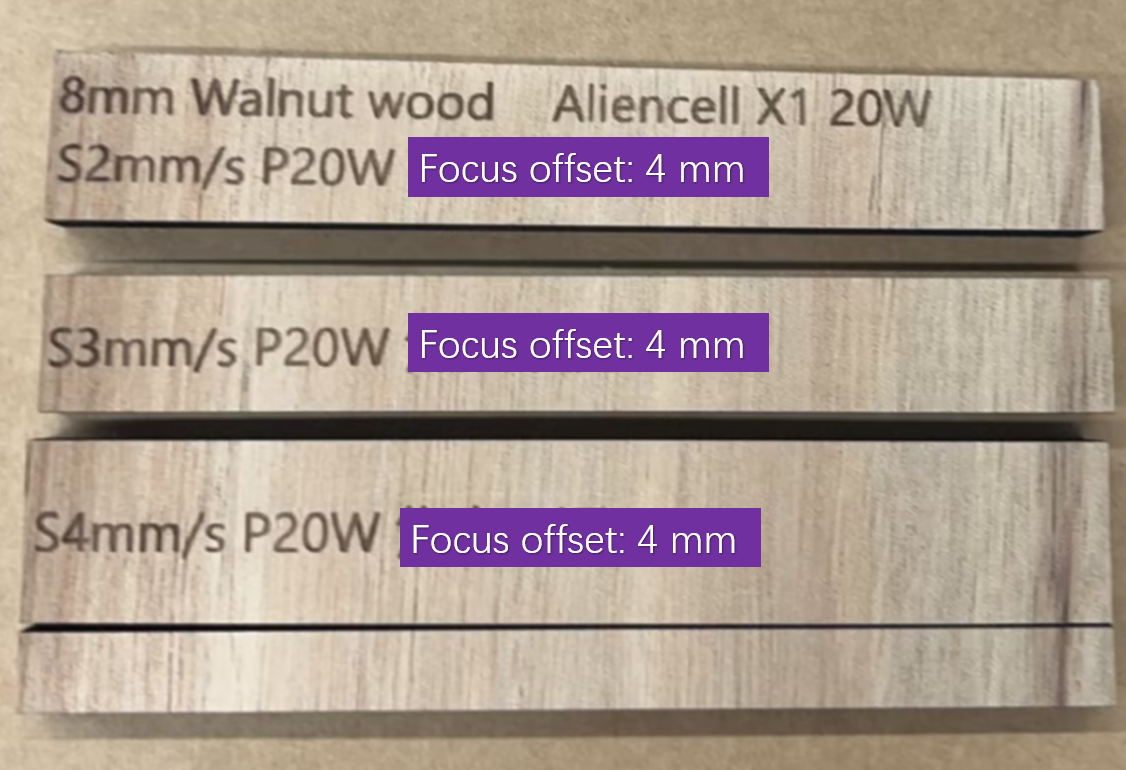

| Walnut wood | Thickness: 8 mm / 0.31 in Speed: 3 mm/s Power: 20W Focus offset: 4 mm / 0.16 in |
 |

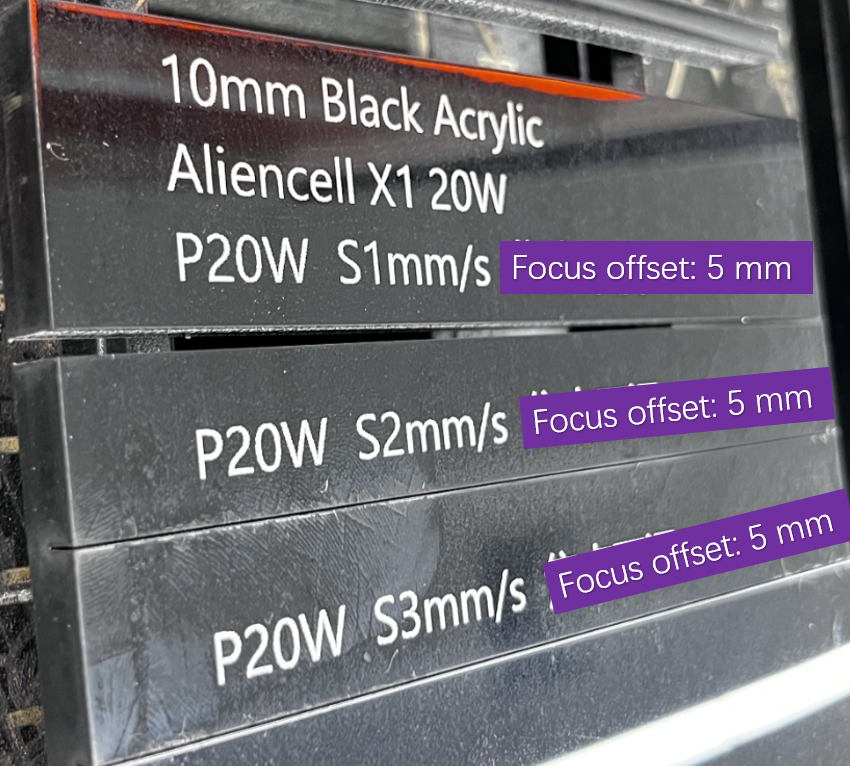

| Black Acrylic | Thickness: 10 mm / 0.39 in Speed: 1 mm/s Power: 20W Focus offset: 5 mm / 0.20 in |
 |

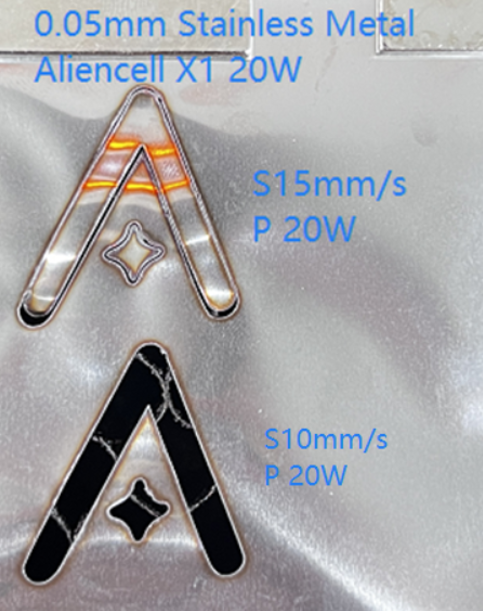

| Stainless Metal | Thickness: 0.05 mm / 0.002 in Speed: 10 mm/s Power: 20W |
 |
| Material | Maximum Capacity | Image |
|---|---|---|

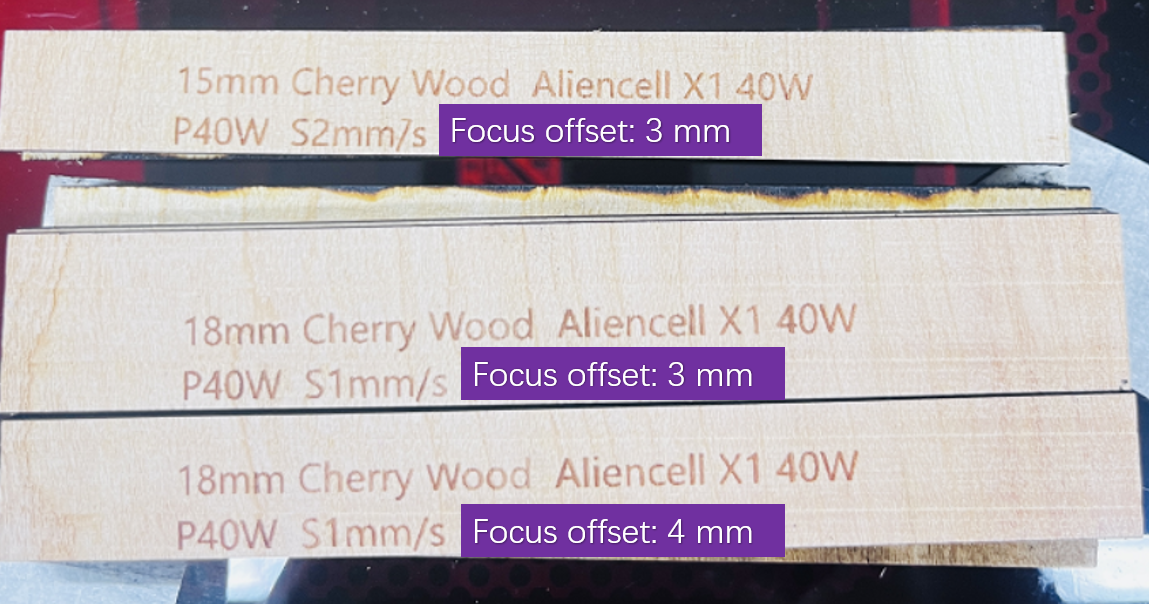

| Cherry Wood | Thickness: 15 mm / 0.59 in Speed: 2 mm/s Power: 40W Focus offset: 3 mm / 0.12 in |
 |

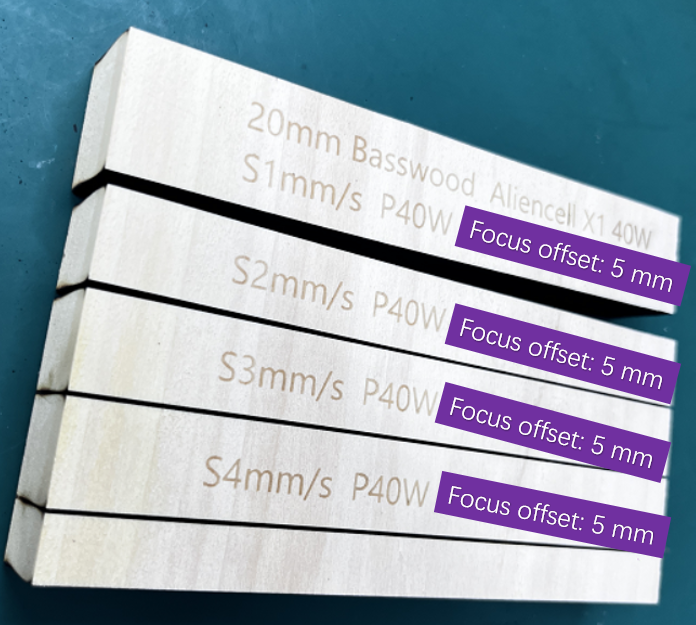

| Basswood | Thickness: 20 mm / 0.79 in Speed: 1 mm/s Power: 40W Focus offset: 5 mm / 0.20 in |
 |

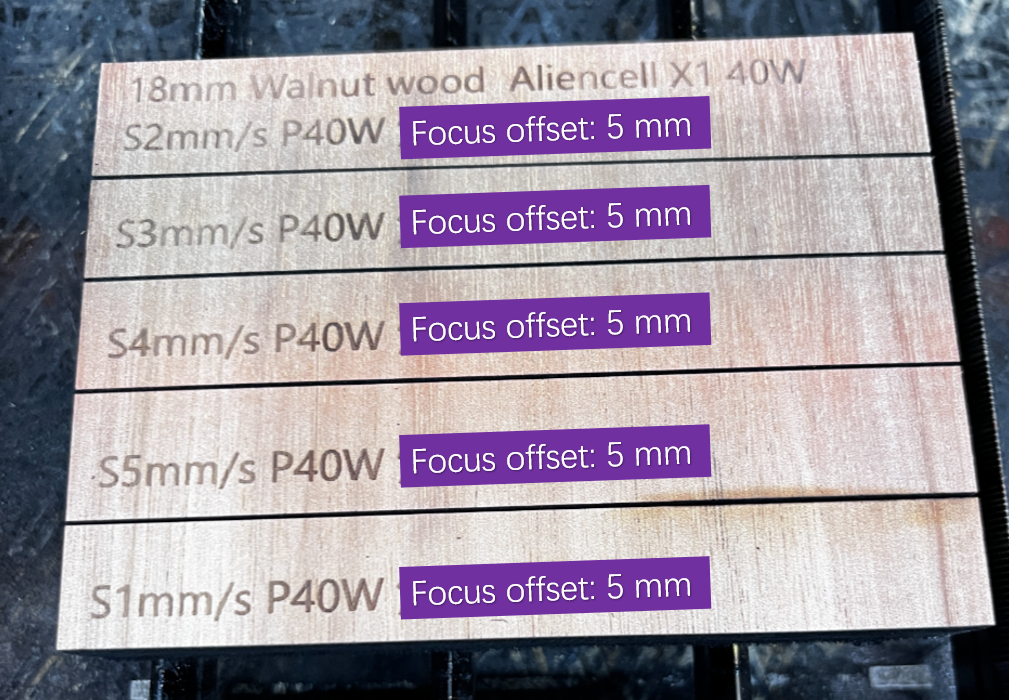

| Walnut wood | Thickness: 18 mm / 0.71 in Speed: 1 mm/s Power: 40W Focus offset: 5 mm / 0.20 in |
 |

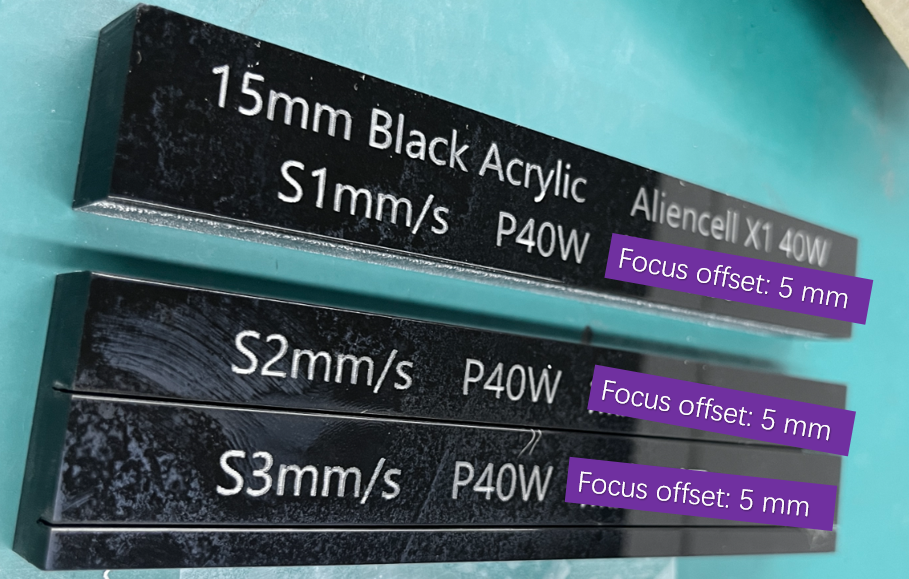

| Black Acrylic | Thickness: 15 mm / 0.59 in Speed: 1 mm/s Power: 40W Focus offset: 5 mm / 0.20 in |
 |

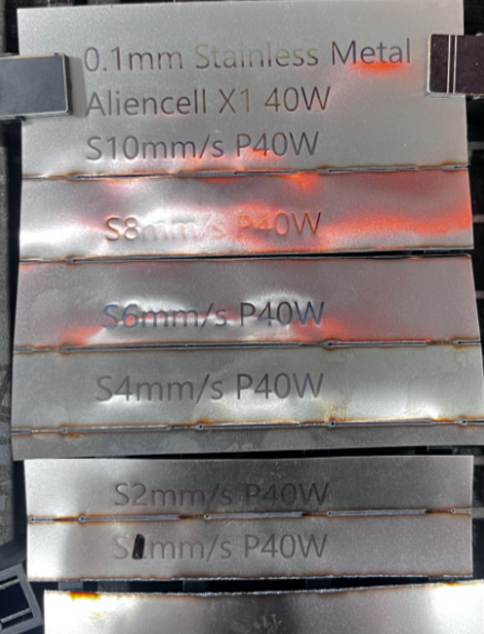

| Stainless Metal | Thickness: 0.1 mm / 0.004 in Speed: 1 mm/s Power: 40W |
 |
| Material | Maximum Capacity | Image |
|---|---|---|

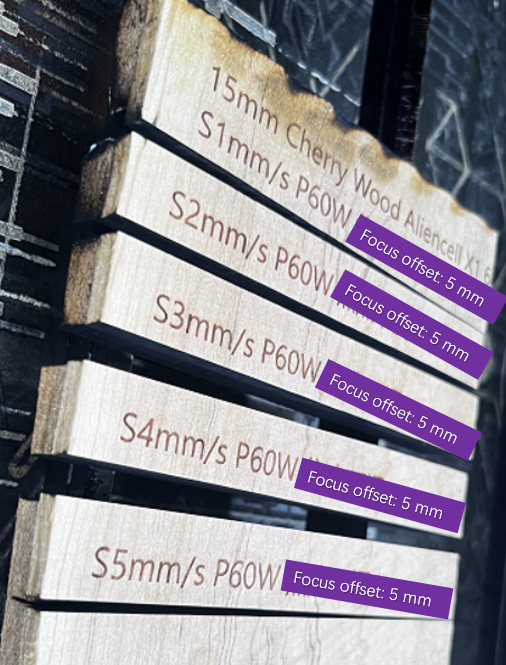

| Cherry Wood | Thickness: 15 mm / 0.59 in Speed: 4 mm/s Power: 60W Focus offset: 5 mm / 0.20 in |
 |
| Basswood | Thickness: 20 mm / 0.79 in Speed: 2 mm/s Power: 60W Focus offset: 5 mm / 0.20 in |
 |

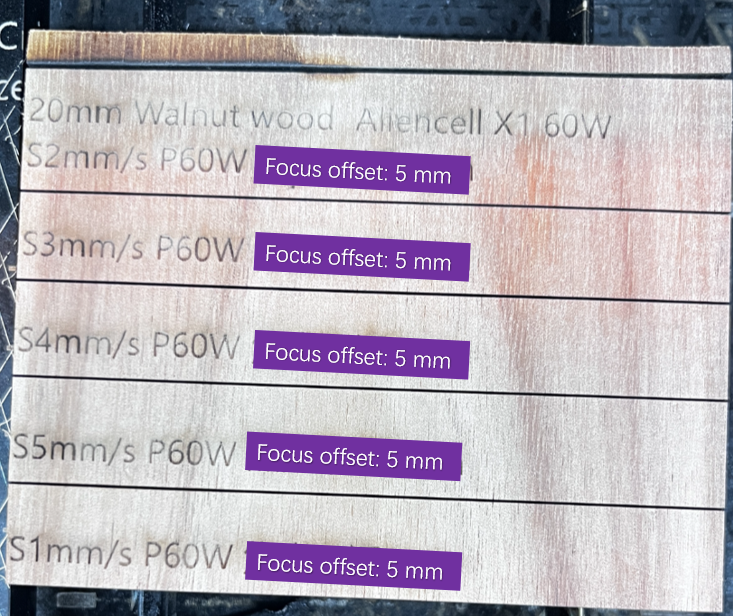

| Walnut wood | Thickness: 20 mm / 0.79 in Speed: 1 mm/s Power: 60W Focus offset: 5 mm / 0.20 in |
 |

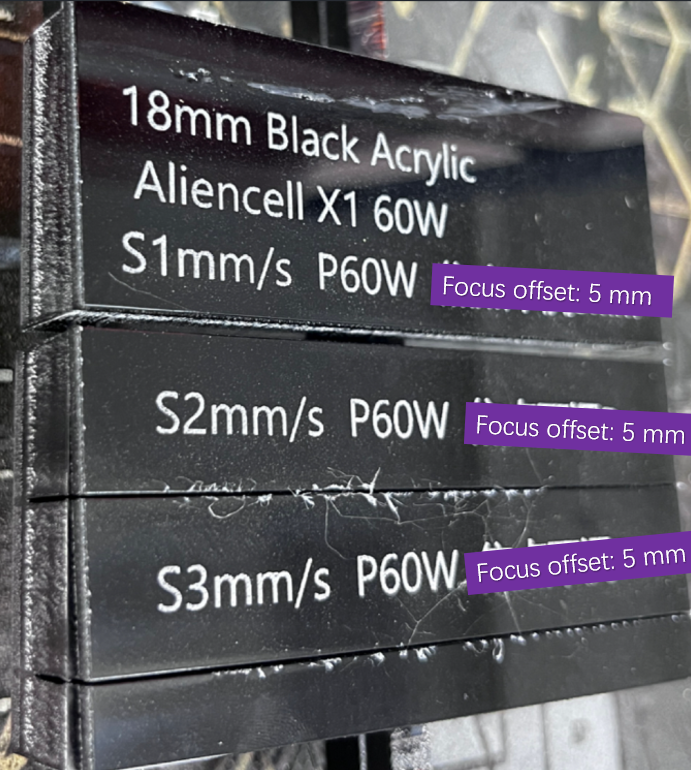

| Black Acrylic | Thickness: 18 mm / 0.71 in Speed: 1 mm/s Power: 60W Focus offset: 5 mm / 0.20 in |
 |

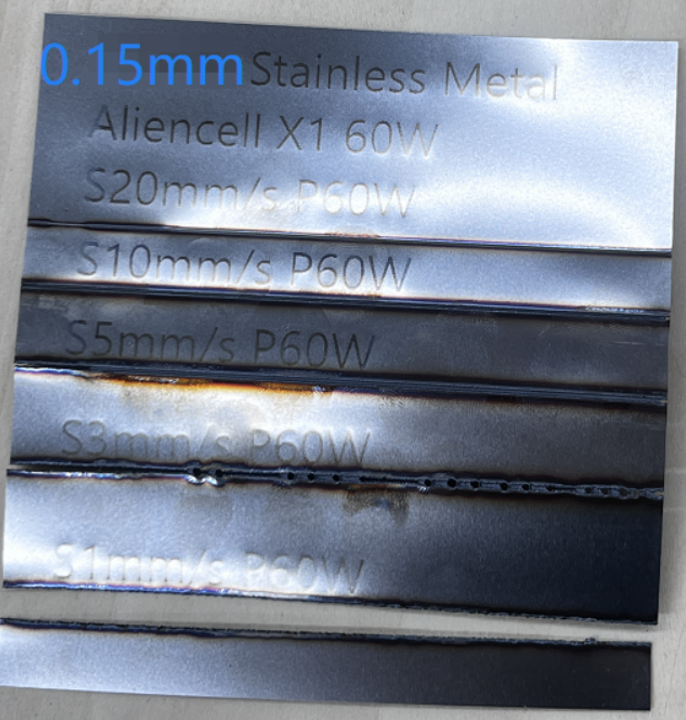

| Stainless Metal | Thickness: 0.15 mm / 0.006 in Speed: 1 mm/s Power: 60W |
 |
¶ 2. Usage Recommendations
- Keep the lens clean, smoke extraction unobstructed, and the material support surface stable when cutting thick materials.
- If the material is not cut through, check the focus height first, then reduce the speed slightly.
- For black acrylic and thick wood, run a corner test first to confirm edge melting, charring, and smoke staining.
- Treat the stainless metal data as a thin-sheet cutting reference only. It does not guarantee stable cutting performance on every stainless steel grade.
