¶ 🔍 Cutting Parameter Smart Query
💡 Tip: Select your laser module model first, then choose the material, and confirm the recommended cutting parameters
Category |
Material Name |
Thickness (mm) | Power (W) | Power (%) | Speed (mm/s) | Focus Offset (mm) | Sample Image |
|---|---|---|---|---|---|---|---|

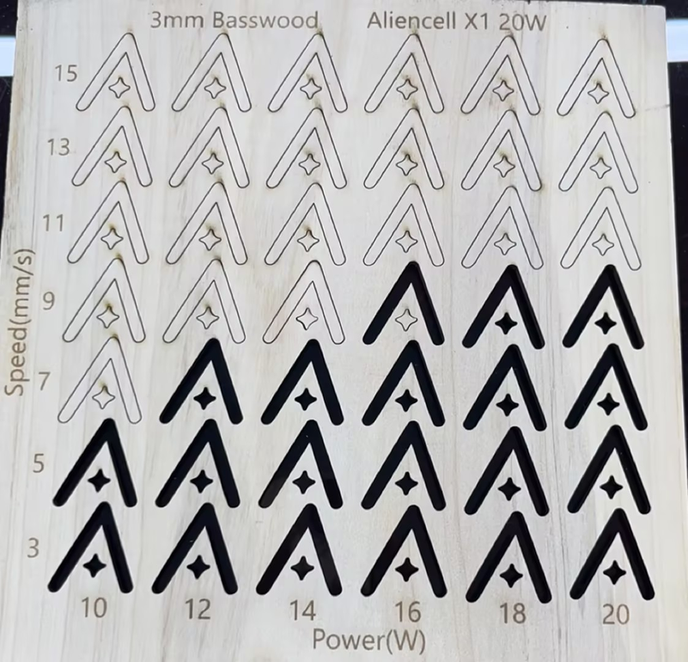

| Wood | Basswood | 3mm | 20W | 100% | 9mm/s | / | View Result |

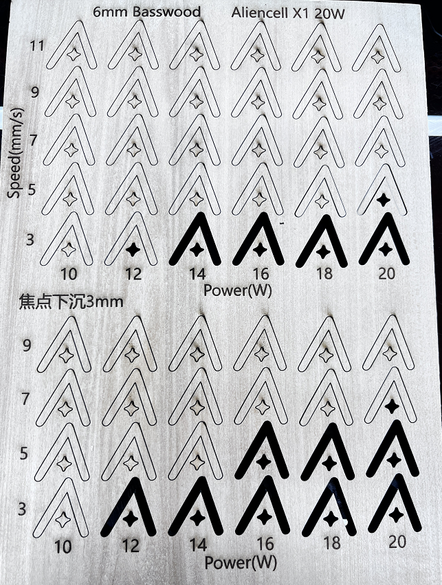

| Wood | Basswood | 6mm | 20W | 100% | 5mm/s | / | View Result |
| Wood | Basswood | 15mm | / | / | / | / | View Result |

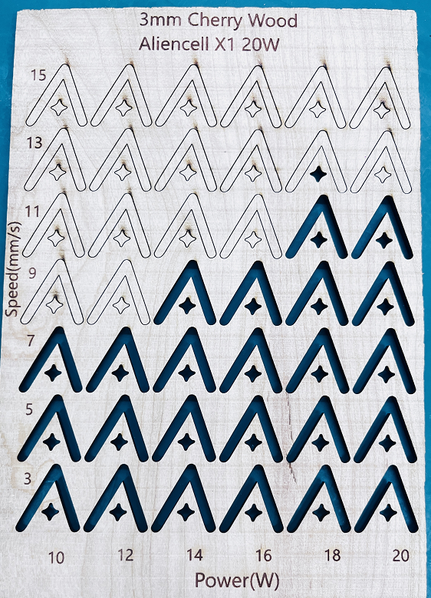

| Wood | Cherry Wood | 3mm | 20W | 100% | 11mm/s | / | View Result |

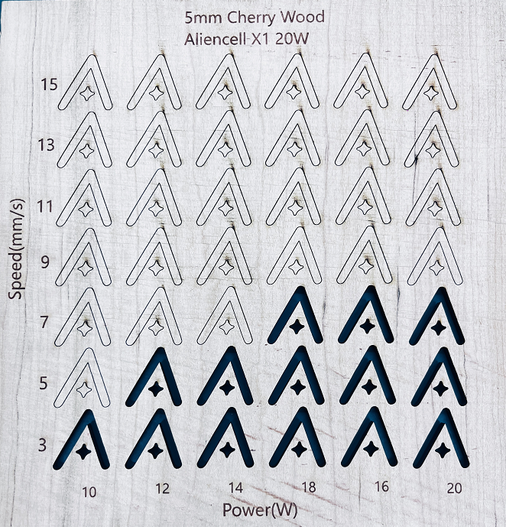

| Wood | Cherry Wood | 5mm | 20W | 100% | 7mm/s | / | View Result |

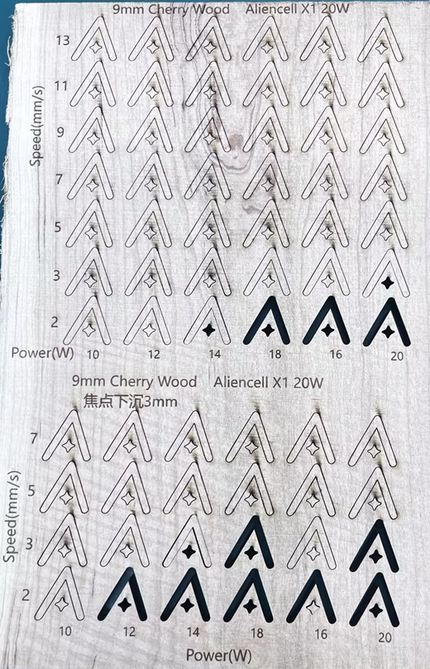

| Wood | Cherry Wood | 9mm | 20W | 100% | 3mm/s | 3mm | View Result |

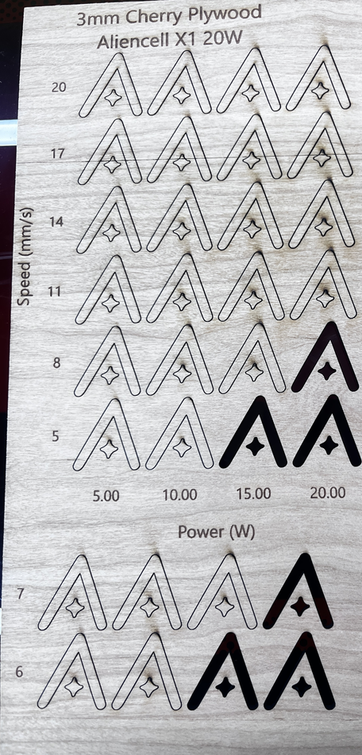

| Wood | Cherry Plywood | 3mm | 20W | 100% | 6mm/s | / | View Result |

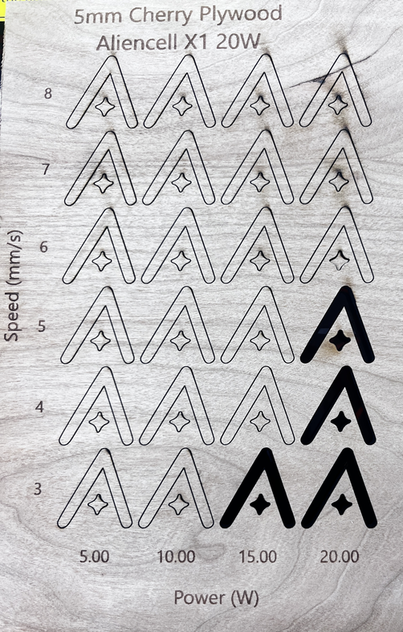

| Wood | Cherry Plywood | 5mm | 20W | 100% | 4mm/s | / | View Result |
| Wood | Cherry Plywood | 9mm | / | / | / | / | / |

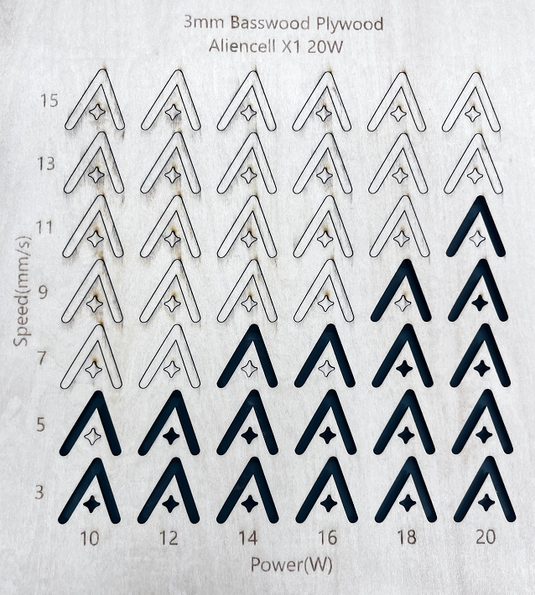

| Wood | Basswood Plywood | 3mm | 20W | 100% | 7mm/s | / | View Result |

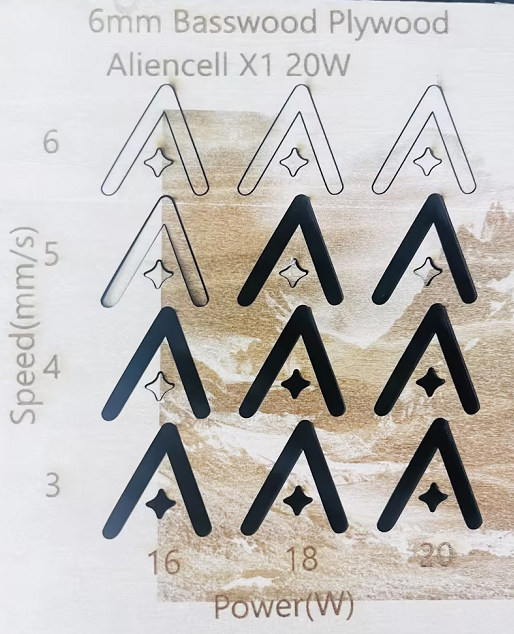

| Wood | Basswood Plywood | 6mm | 20W | 100% | 4mm/s | / | View Result |

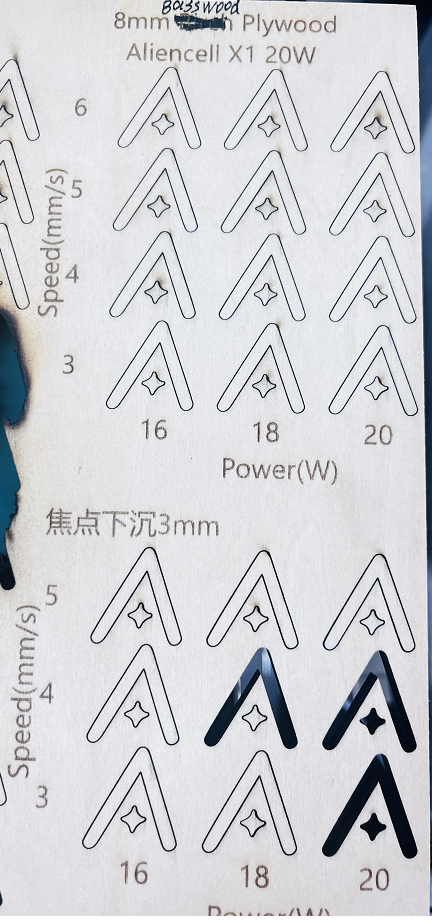

| Wood | Basswood Plywood | 8mm | 20W | 100% | 3mm/s | 3mm | View Result |

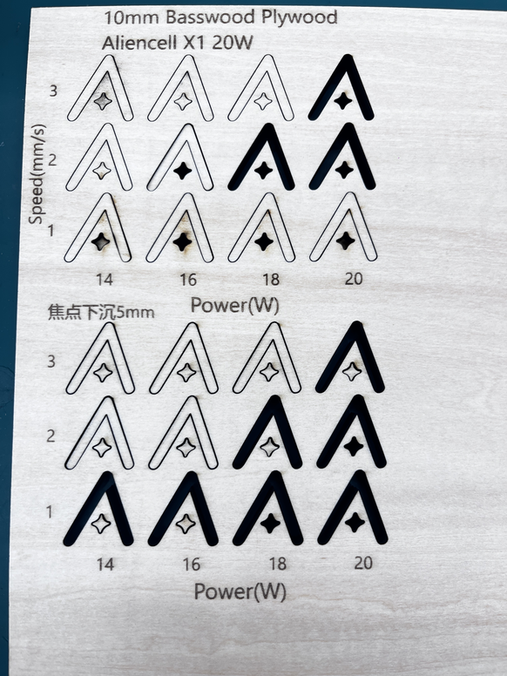

| Wood | Basswood Plywood | 10mm | 20W | 100% | 2mm/s | 5mm | View Result |
| Wood | Basswood Plywood | 15mm | / | / | / | / | / |

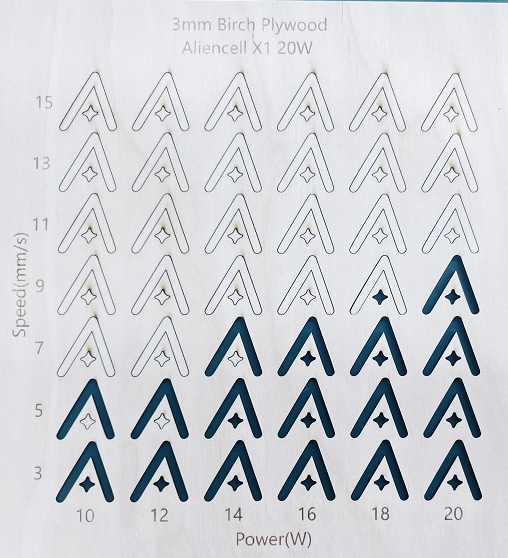

| Wood | Birch Plywood | 3mm | 20W | 100% | 7mm/s | / | View Result |

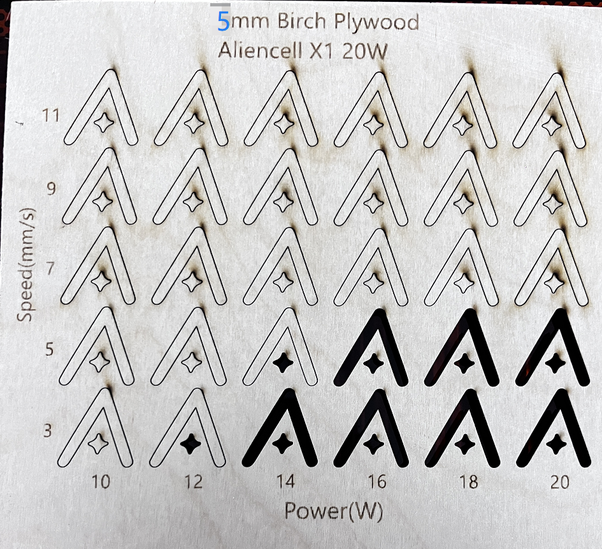

| Wood | Birch Plywood | 5mm | 20W | 100% | 5mm/s | / | View Result |

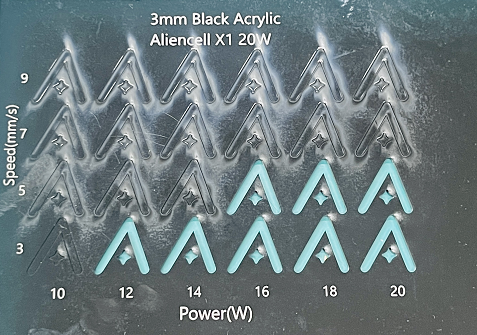

| Acrylic | Black Acrylic | 3mm | 20W | 100% | 5mm/s | / | View Result |

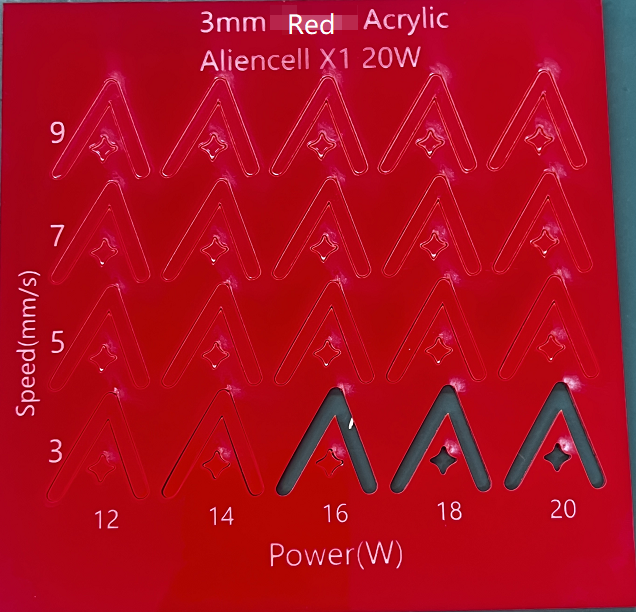

| Acrylic | Red Acrylic | 3mm | 20W | 100% | 3mm/s | / | View Result |

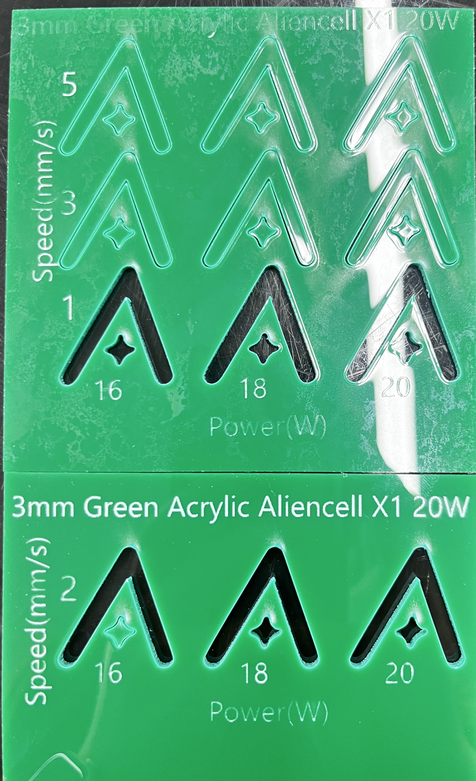

| Acrylic | Green Acrylic | 3mm | 20W | 100% | 2mm/s | / | View Result |

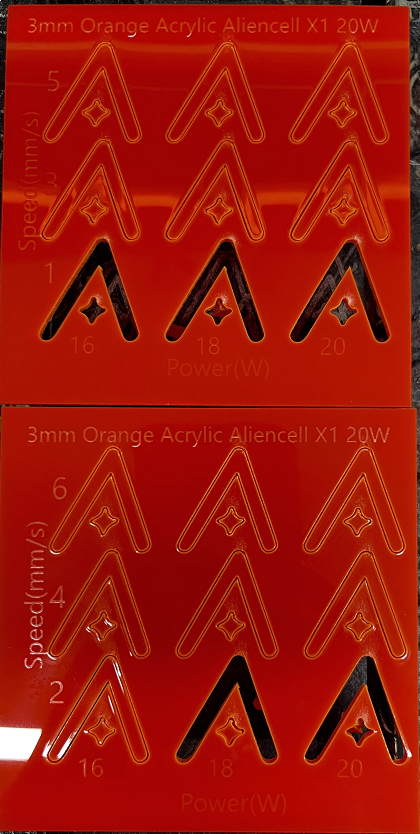

| Acrylic | Orange Acrylic | 3mm | 20W | 100% | 1mm/s | / | View Result |

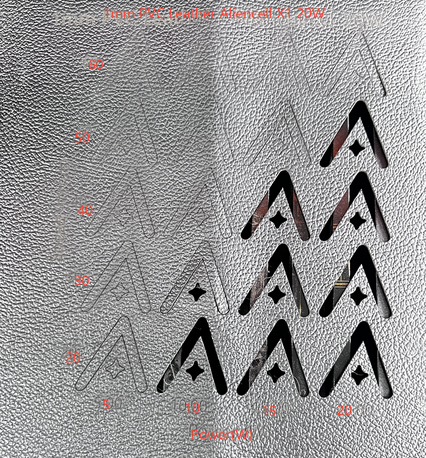

| Leather | PVC Leather | 1mm | 20W | 100% | 40mm/s | / | View Result |

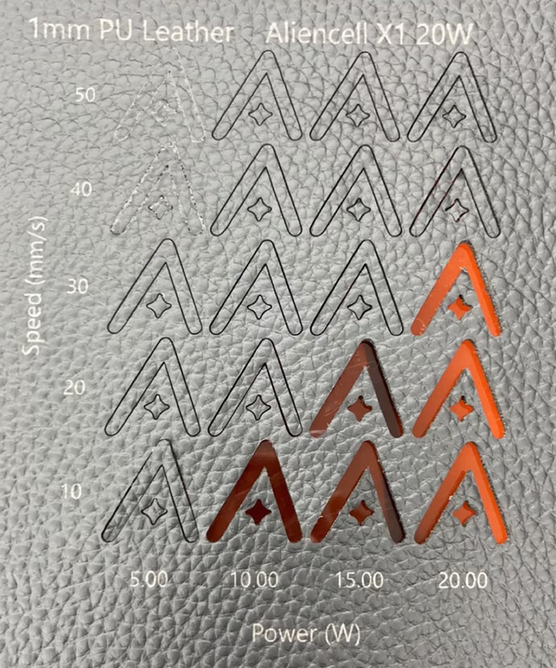

| Leather | PU Leather | 2mm | 20W | 100% | 20mm/s | / | View Result |

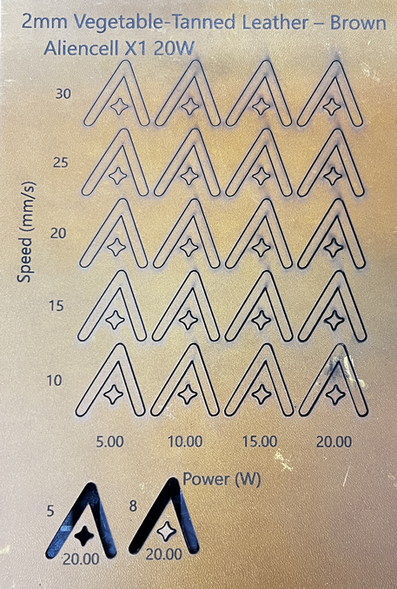

| Leather | Vegetable-Tanned Leather – Brown | 2mm | 20W | 100% | 5mm/s | / | View Result |

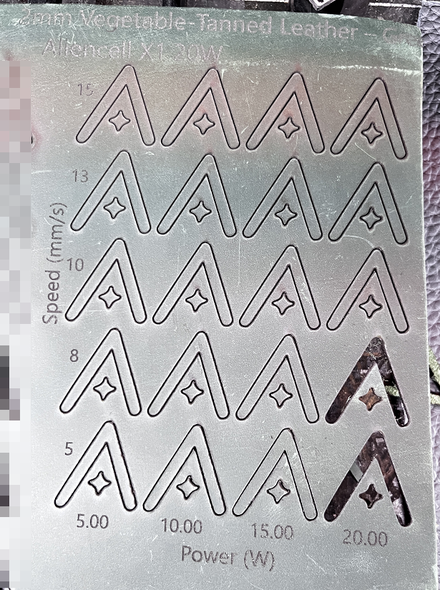

| Leather | Vegetable-Tanned Leather – Green | 2mm | 20W | 100% | 5mm/s | / | View Result |

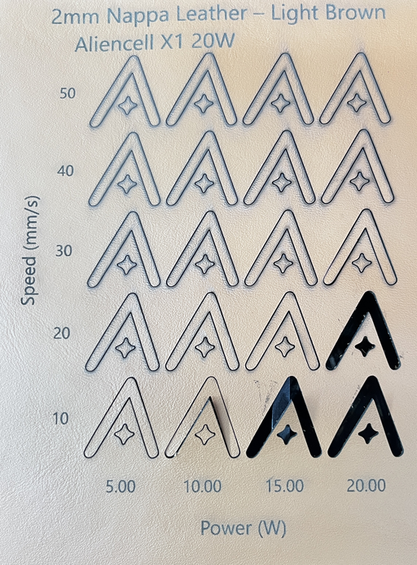

| Leather | Nappa Leather – Light Brown | 2mm | 20W | 100% | 10mm/s | / | View Result |
| Fabric & Soft Materials | Craft Felt – White | 1mm | 20W | 100% | 1mm/s | / | / |
| Fabric & Soft Materials | Craft Felt – White | 2mm | / | / | / | / | / |

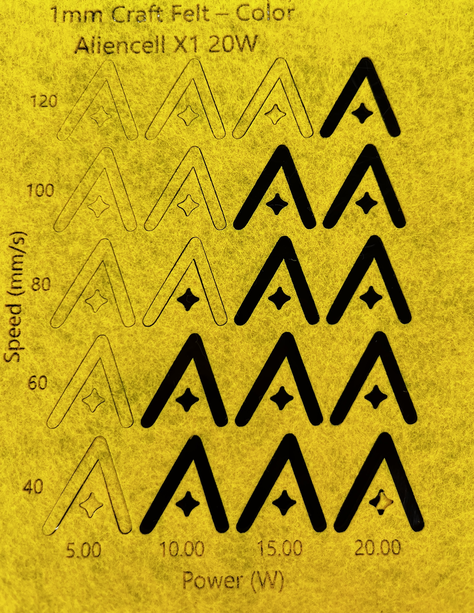

| Fabric & Soft Materials | Craft Felt – Color | 1mm | 20W | 100% | 100mm/s | / | View Result |

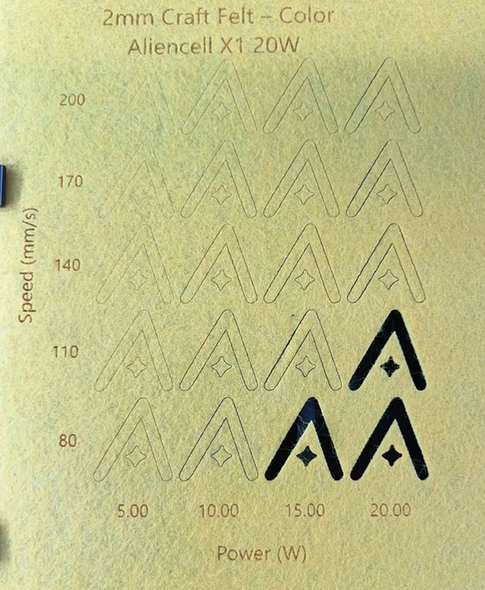

| Fabric & Soft Materials | Craft Felt – Color | 2mm | 20W | 100% | 80mm/s | / | View Result |

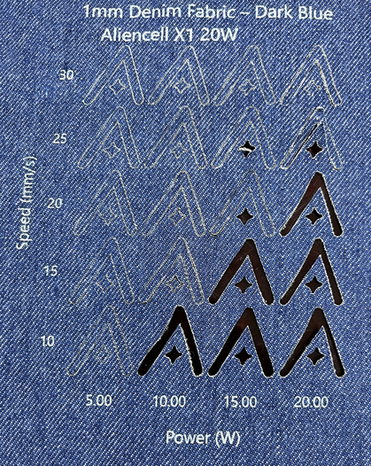

| Fabric & Soft Materials | Denim Fabric – Dark Blue | 1mm | 20W | 100% | 15mm/s | / | View Result |

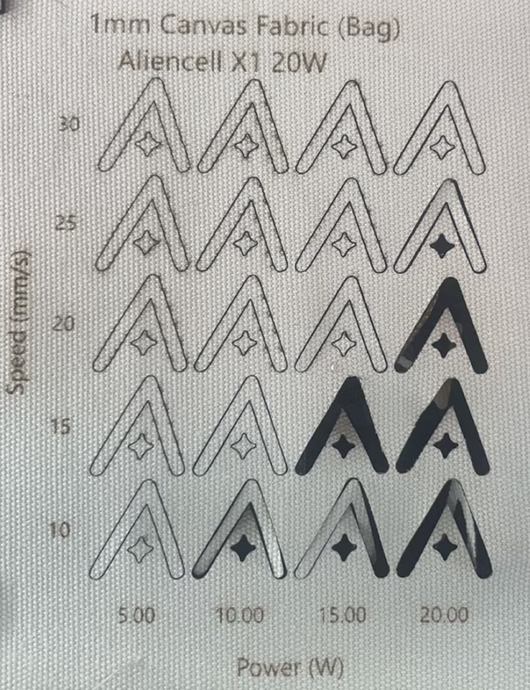

| Fabric & Soft Materials | Canvas Fabric (Bag) | 1mm | 20W | 100% | 15mm/s | / | View Result |

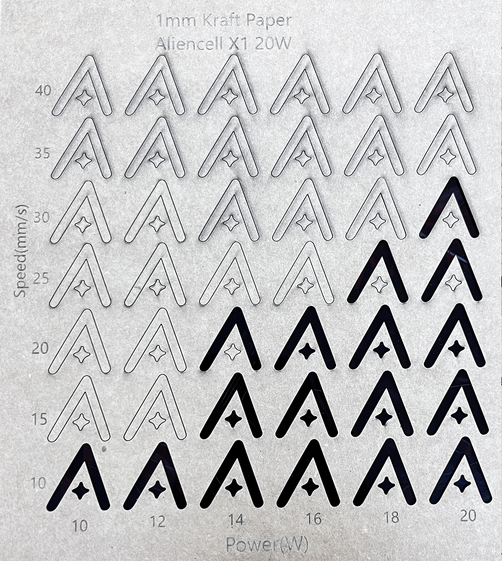

| Paper | Kraft Paper | 1mm | 20W | 100% | 20mm/s | / | View Result |

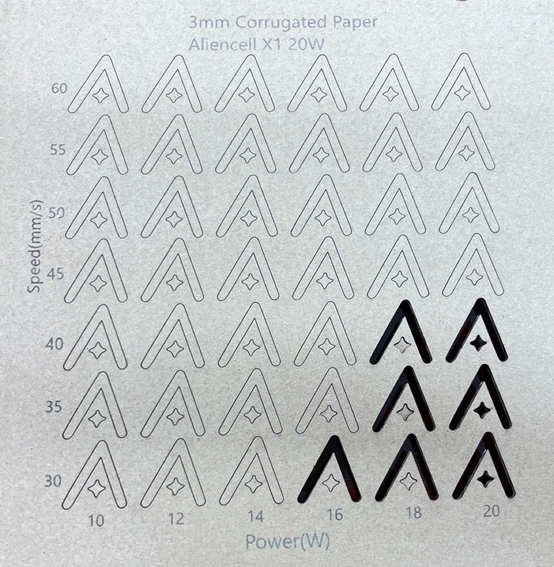

| Paper | Corrugated Paper | 3mm | 20W | 100% | 35mm/s | / | View Result |
| Others | Silicone Watch Strap | 1mm | / | / | / | / | / |
Category |
Material Name |
Thickness (mm) | Power (W) | Power (%) | Speed (mm/s) | Focus Offset (mm) | Sample Image |
|---|---|---|---|---|---|---|---|

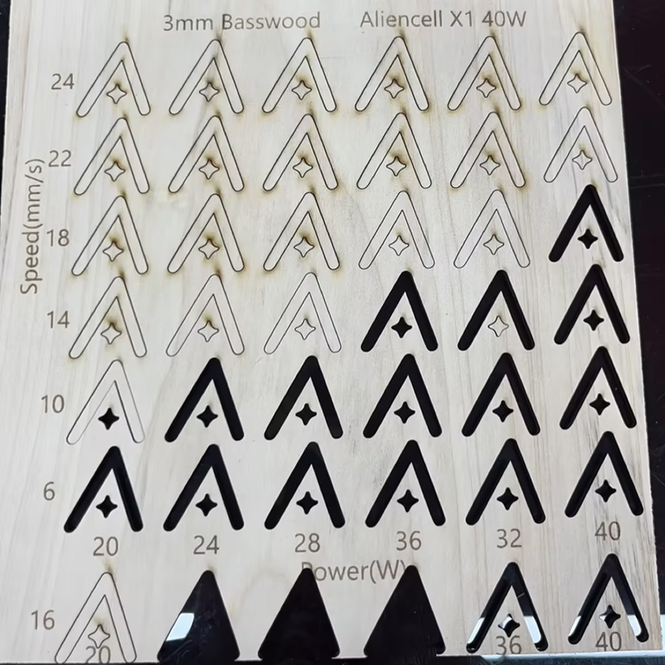

| Wood | Basswood | 3mm | 40W | 100% | 16mm/s | / | View Result |

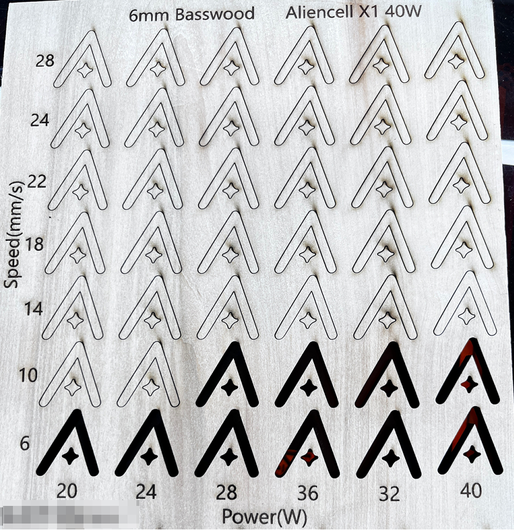

| Wood | Basswood | 6mm | 40W | 100% | 10mm/s | / | View Result |

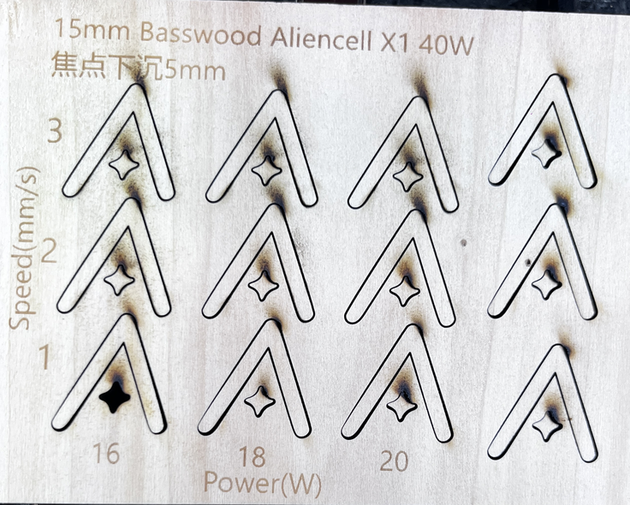

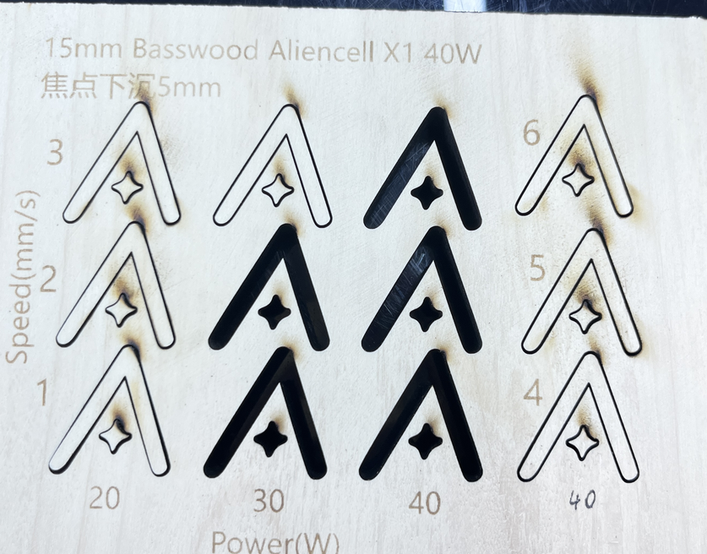

| Wood | Basswood | 15mm | 40W | 100% | 3mm/s | 5mm | View Result |

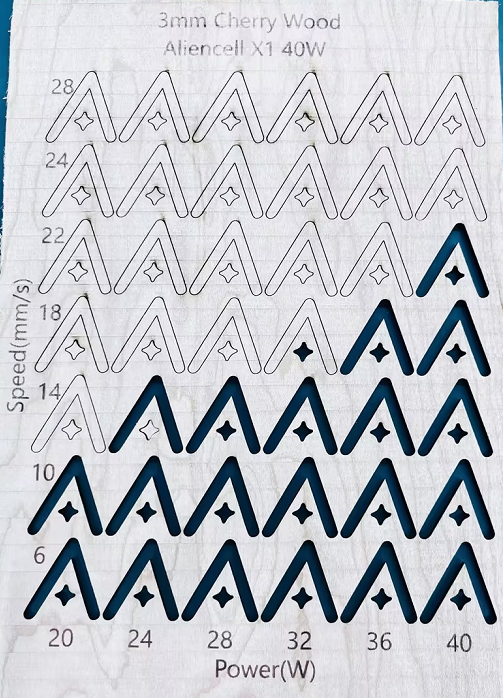

| Wood | Cherry Wood | 3mm | 40W | 100% | 18mm/s | / | View Result |

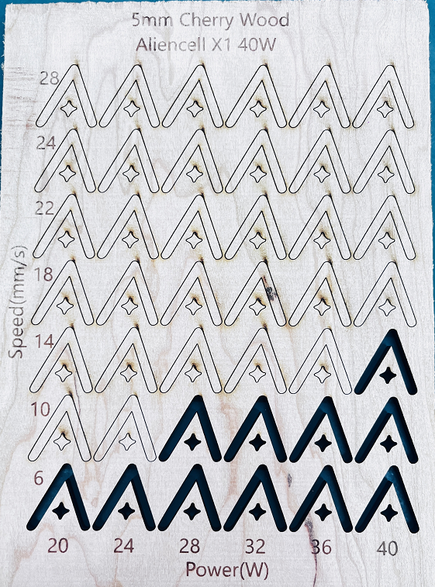

| Wood | Cherry Wood | 5mm | 40W | 100% | 10mm/s | / | View Result |

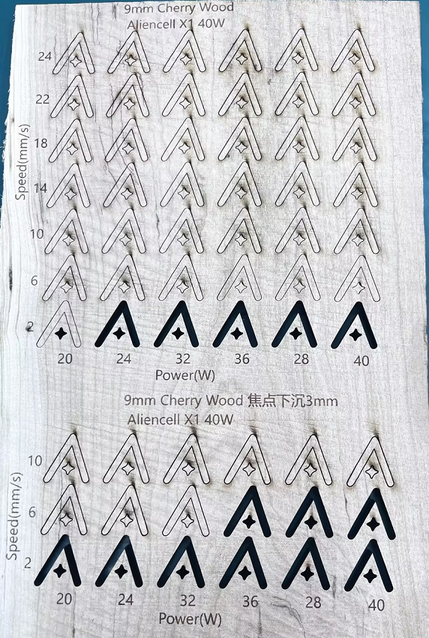

| Wood | Cherry Wood | 9mm | 40W | 100% | 6mm/s | 3mm | View Result |

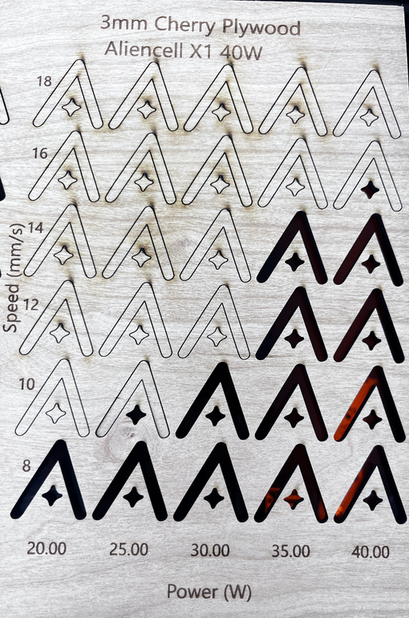

| Wood | Cherry Plywood | 3mm | 40W | 100% | 12mm/s | / | View Result |

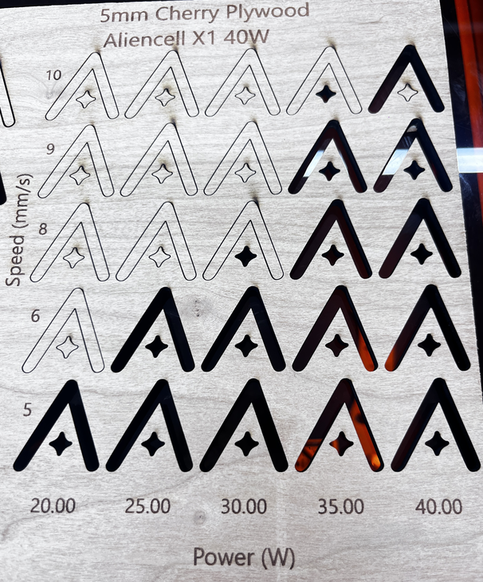

| Wood | Cherry Plywood | 5mm | 40W | 100% | 8mm/s | / | View Result |

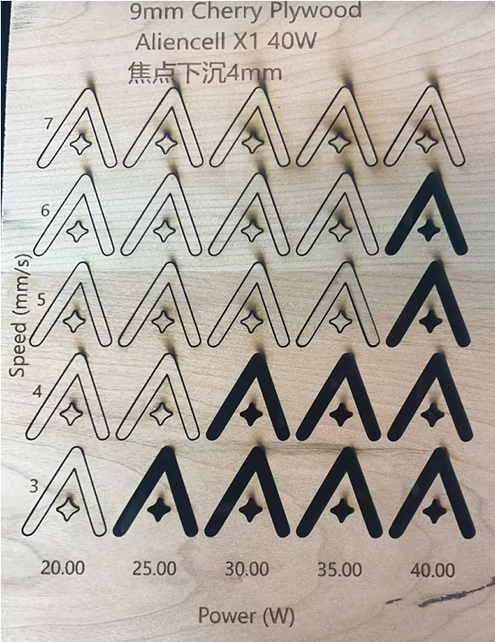

| Wood | Cherry Plywood | 9mm | 40W | 100% | 4mm/s | 4mm | View Result |

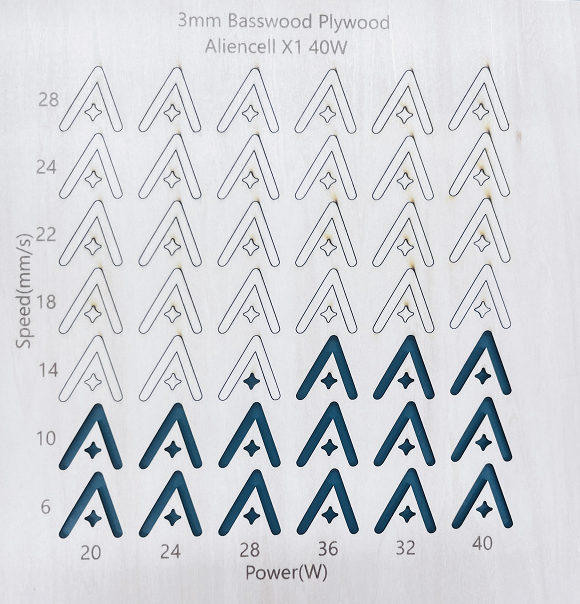

| Wood | Basswood Plywood | 3mm | 40W | 100% | 14mm/s | / | View Result |

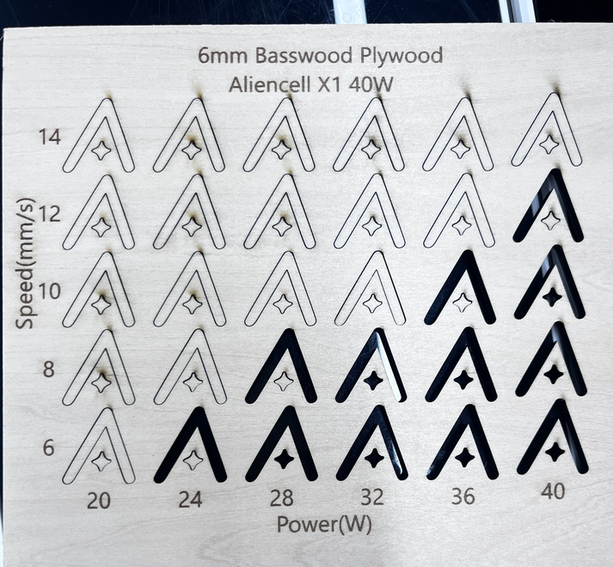

| Wood | Basswood Plywood | 6mm | 40W | 100% | 10mm/s | / | View Result |

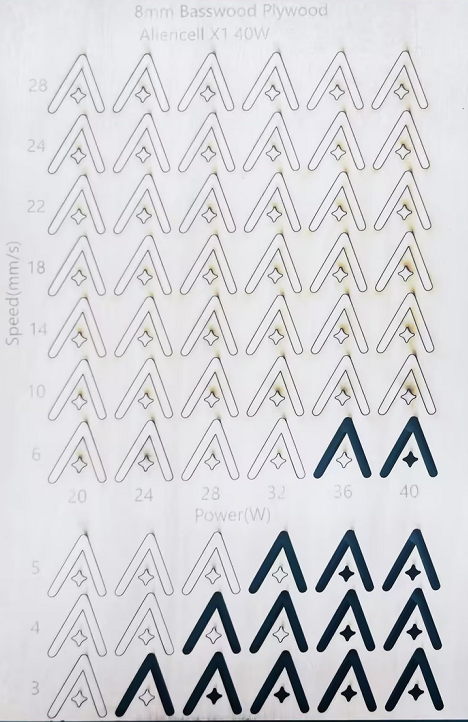

| Wood | Basswood Plywood | 8mm | 40W | 100% | 5mm/s | / | View Result |

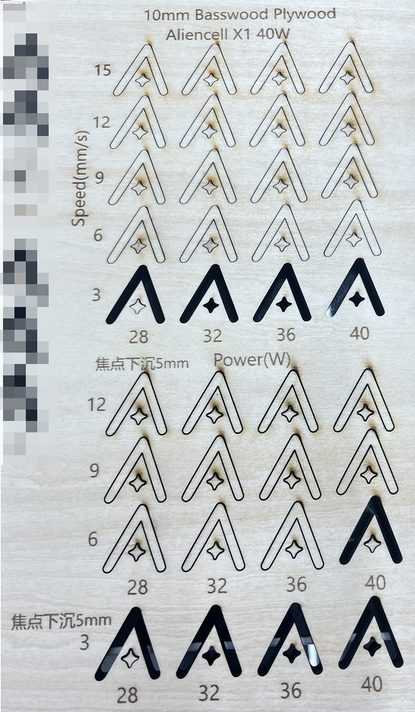

| Wood | Basswood Plywood | 10mm | 40W | 100% | 3mm/s | 5mm | View Result |

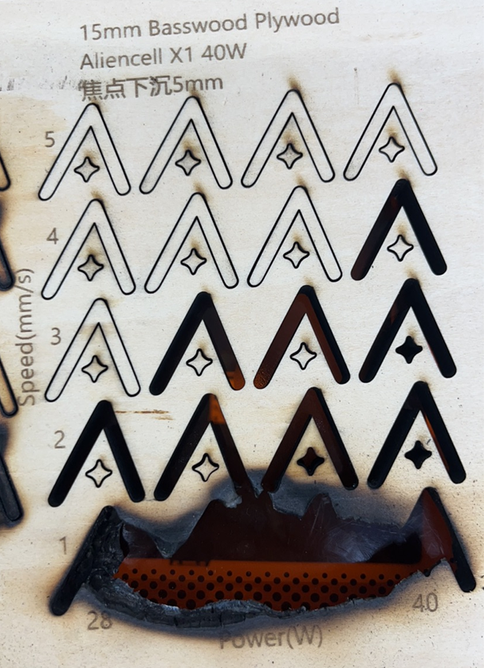

| Wood | Basswood Plywood | 15mm | 40W | 100% | 3mm/s | 5mm | View Result |

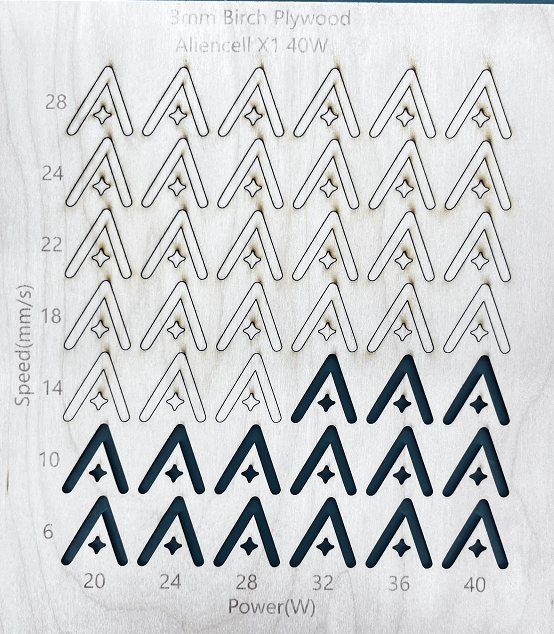

| Wood | Birch Plywood | 3mm | 40W | 100% | 14mm/s | / | View Result |

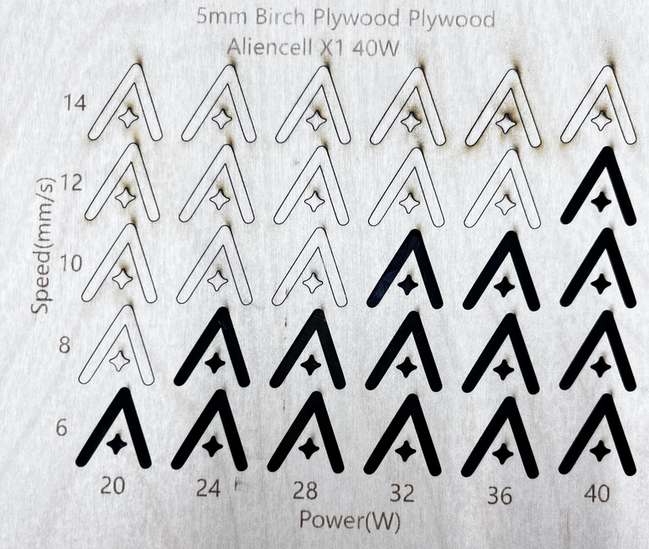

| Wood | Birch Plywood | 5mm | 40W | 100% | 8mm/s | / | View Result |

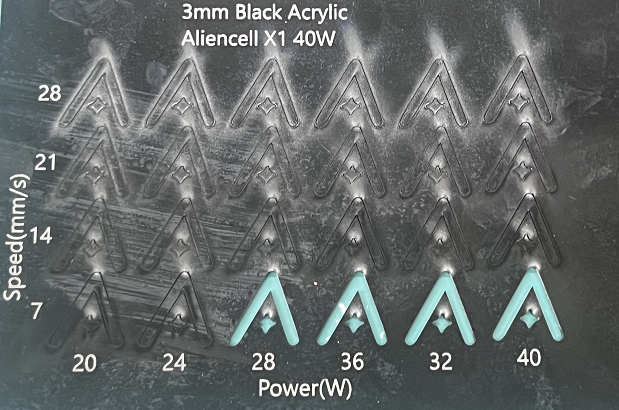

| Acrylic | Black Acrylic | 3mm | 40W | 100% | 7mm/s | / | View Result |

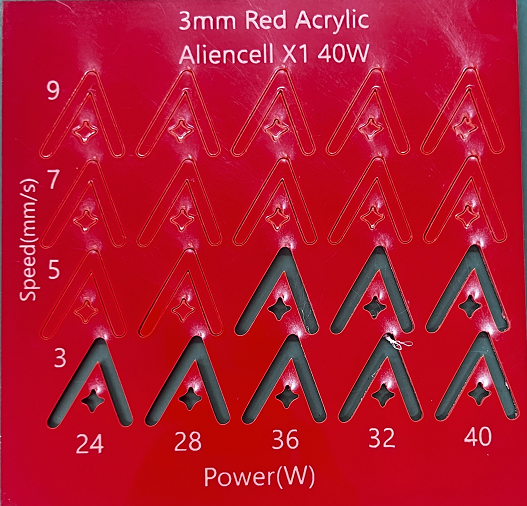

| Acrylic | Red Acrylic | 3mm | 40W | 100% | 5mm/s | / | View Result |

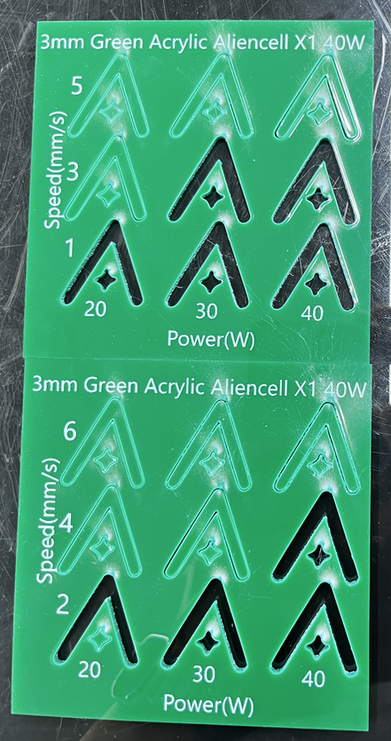

| Acrylic | Green Acrylic | 3mm | 40W | 100% | 3mm/s | / | View Result |

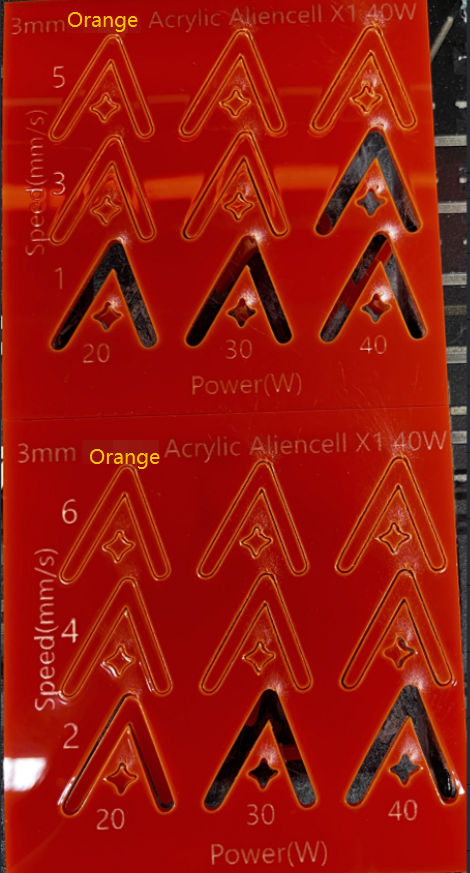

| Acrylic | Orange Acrylic | 3mm | 40W | 75% | 2mm/s | / | View Result |

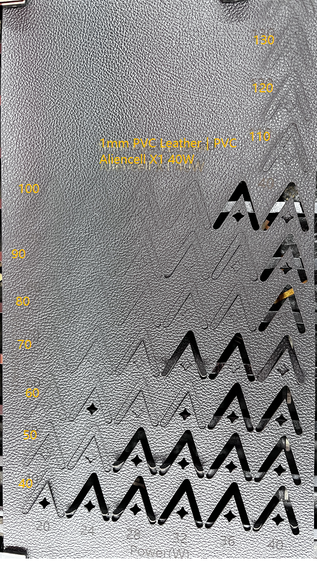

| Leather | PVC Leather | 1mm | 40W | 100% | 100mm/s | / | View Result |

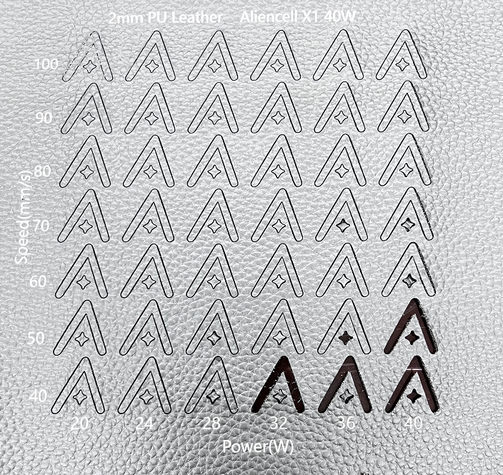

| Leather | PU Leather | 2mm | 40W | 100% | 50mm/s | / | View Result |

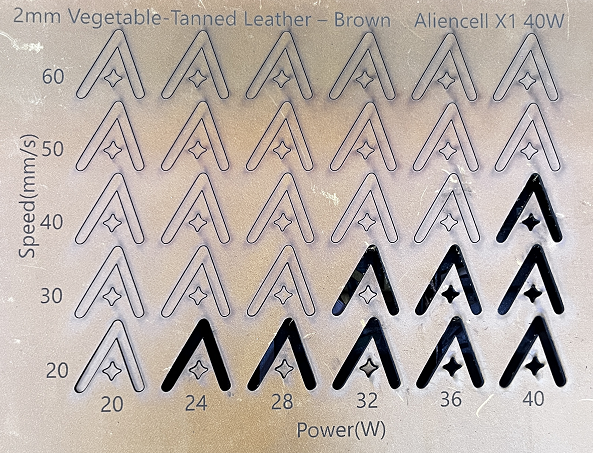

| Leather | Vegetable-Tanned Leather – Brown | 2mm | 40W | 100% | 30mm/s | / | View Result |

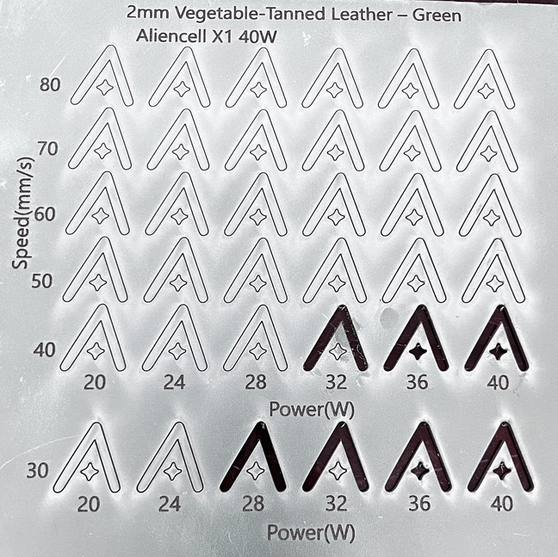

| Leather | Vegetable-Tanned Leather – Green | 2mm | 40W | 100% | 30mm/s | / | View Result |

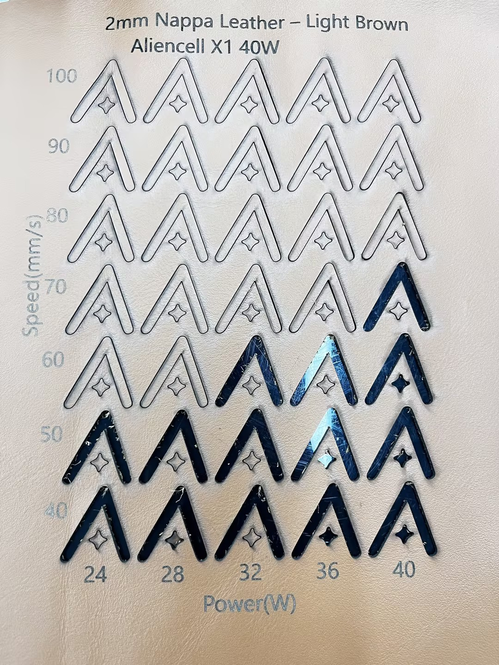

| Leather | Nappa Leather – Light Brown | 2mm | 40W | 100% | 50mm/s | / | View Result |

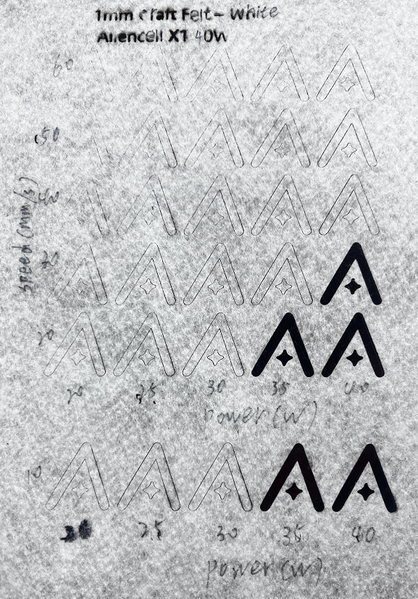

| Fabric & Soft Materials | Craft Felt – White | 1mm | 40W | 100% | 10mm/s | / | View Result |

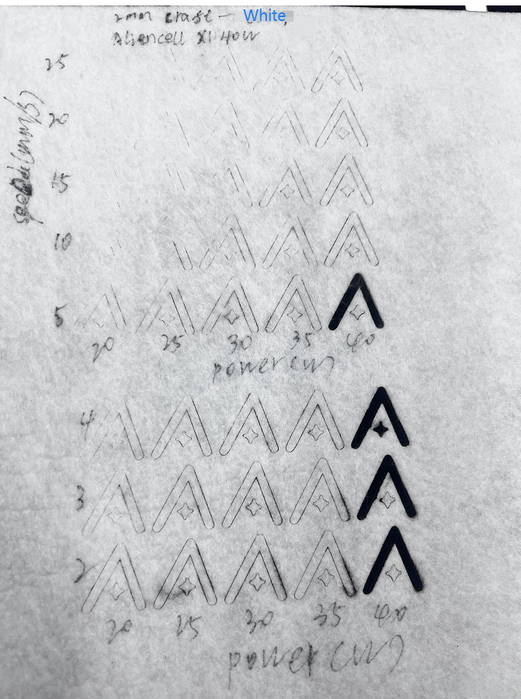

| Fabric & Soft Materials | Craft Felt – White | 2mm | 40W | 100% | 3mm/s | / | View Result |
| Fabric & Soft Materials | Craft Felt – Color | 1mm | 40W | 100% | 300mm/s | / | View Result |

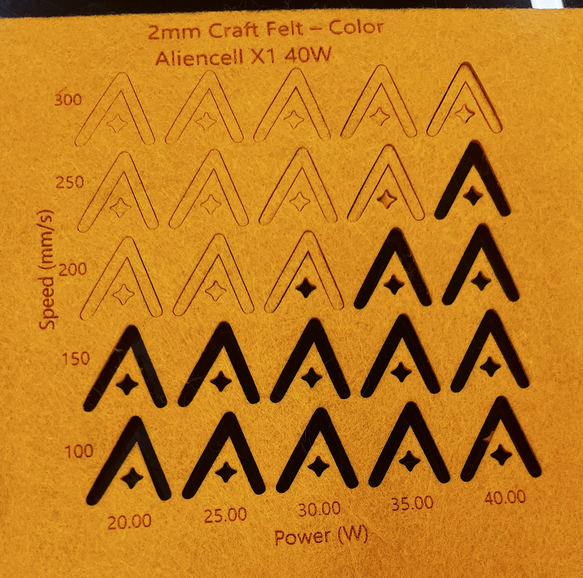

| Fabric & Soft Materials | Craft Felt – Color | 2mm | 40W | 100% | 200mm/s | / | View Result |

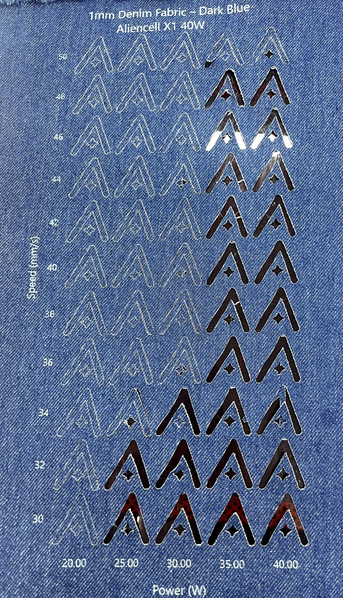

| Fabric & Soft Materials | Denim Fabric – Dark Blue | 1mm | 40W | 100% | 40mm/s | / | View Result |

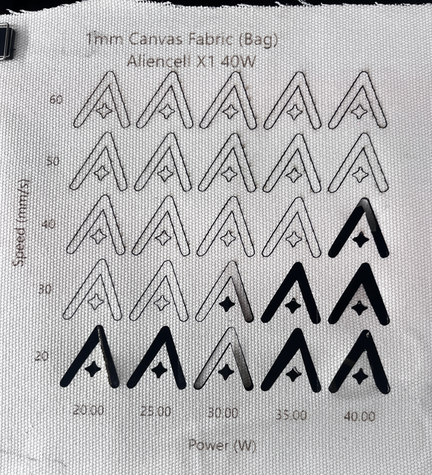

| Fabric & Soft Materials | Canvas Fabric (Bag) | 1mm | 40W | 100% | 30mm/s | / | View Result |

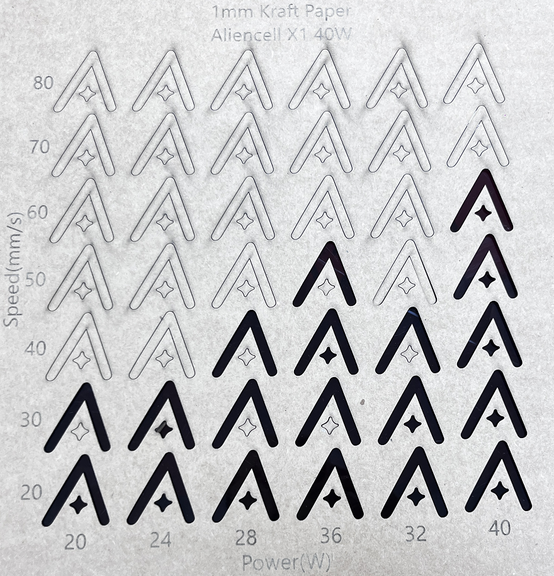

| Paper | Kraft Paper | 1mm | 40W | 100% | 40mm/s | / | View Result |

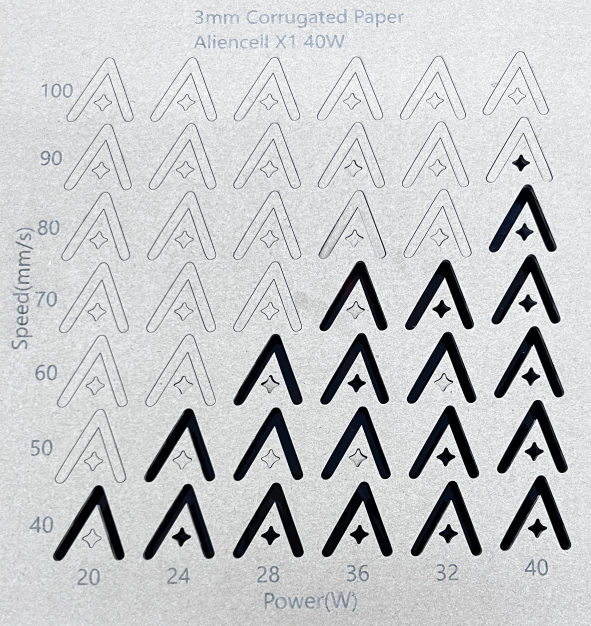

| Paper | Corrugated Paper | 3mm | 40W | 100% | 70mm/s | / | View Result |

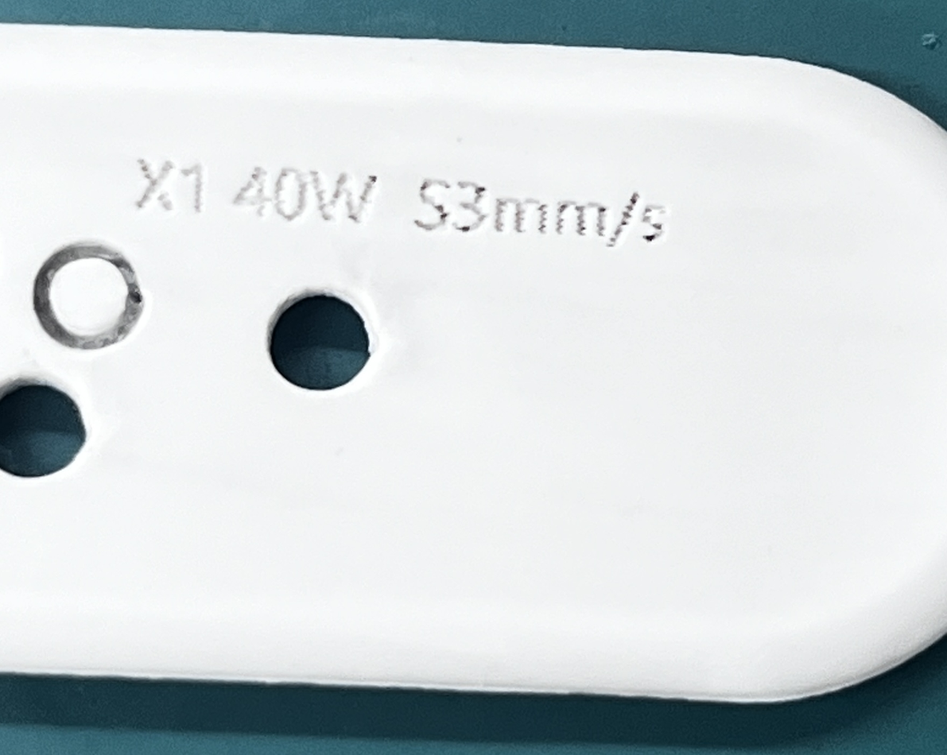

| Others | Silicone Watch Strap | 1mm | 40W | 100% | 3mm/s | / | View Result |
Category |
Material Name |
Thickness (mm) | Power (W) | Power (%) | Speed (mm/s) | Focus Offset (mm) | Sample Image |
|---|---|---|---|---|---|---|---|

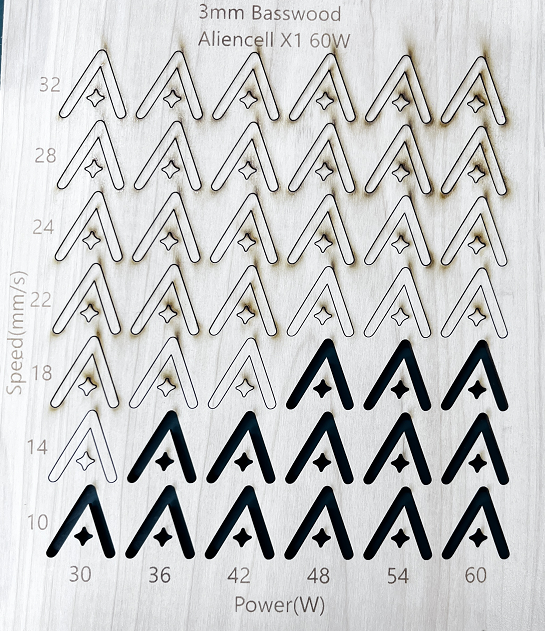

| Wood | Basswood | 3mm | 60W | 100% | 18mm/s | / | View Result |

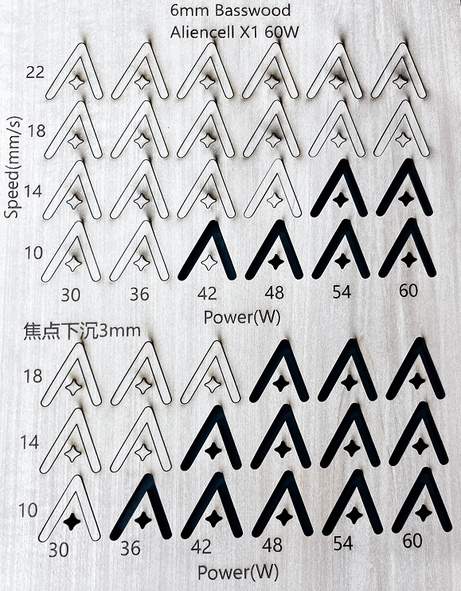

| Wood | Basswood | 6mm | 60W | 100% | 14mm/s | / | View Result |

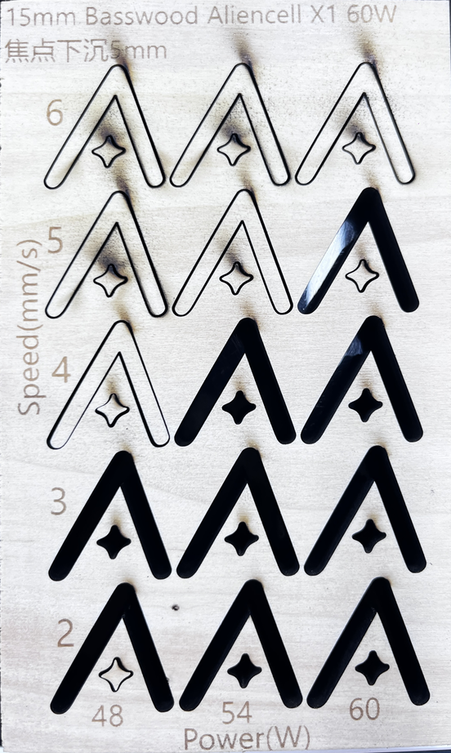

| Wood | Basswood | 15mm | 60W | 100% | 4mm/s | 5mm | View Result |

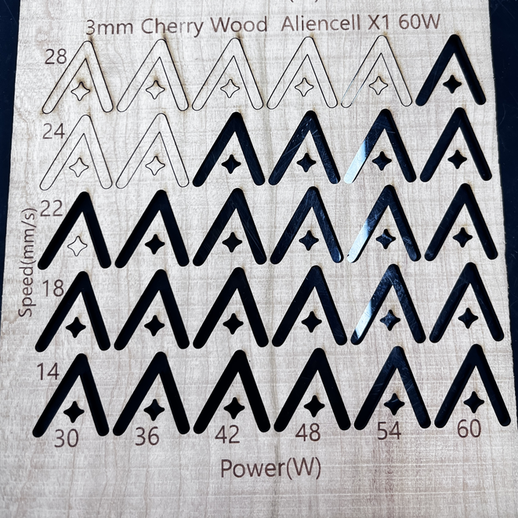

| Wood | Cherry Wood | 3mm | 60W | 100% | 24mm/s | / | View Result |

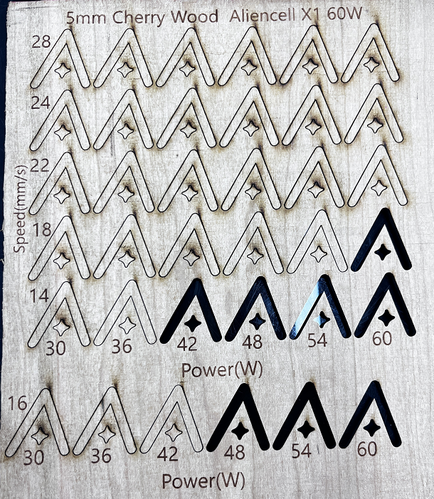

| Wood | Cherry Wood | 5mm | 60W | 100% | 16mm/s | / | View Result |

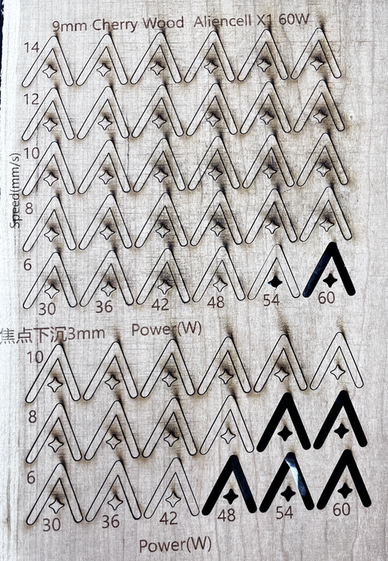

| Wood | Cherry Wood | 9mm | 60W | 100% | 8mm/s | 3mm | View Result |

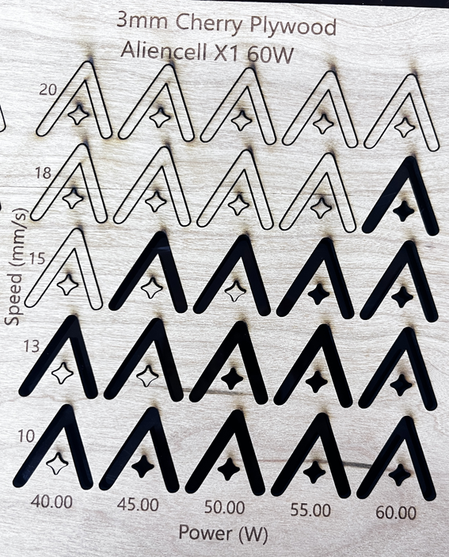

| Wood | Cherry Plywood | 3mm | 60W | 100% | 15mm/s | / | View Result |

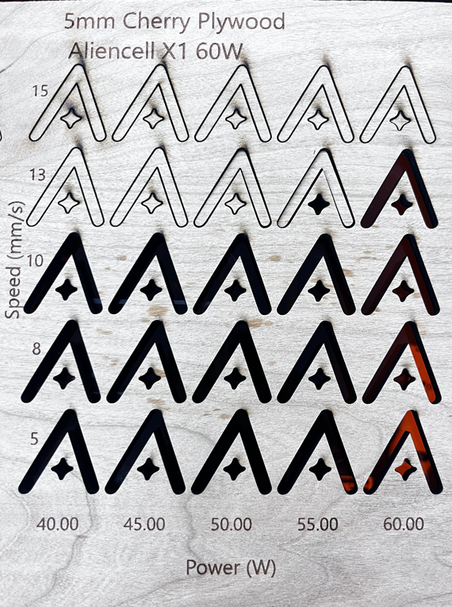

| Wood | Cherry Plywood | 5mm | 60W | 100% | 10mm/s | / | View Result |

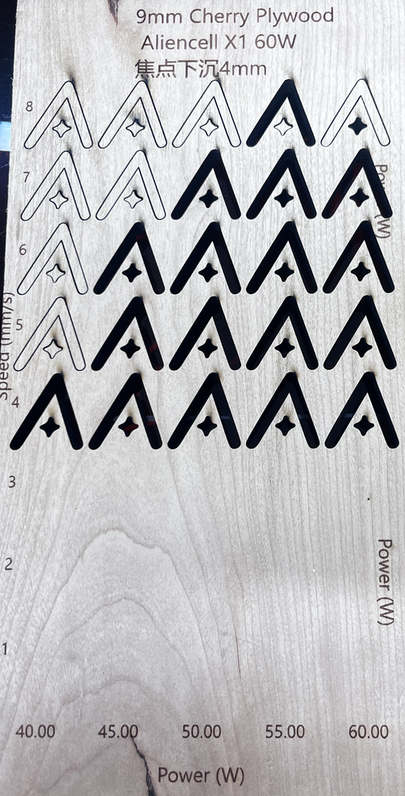

| Wood | Cherry Plywood | 9mm | 60W | 100% | 7mm/s | 4mm | View Result |

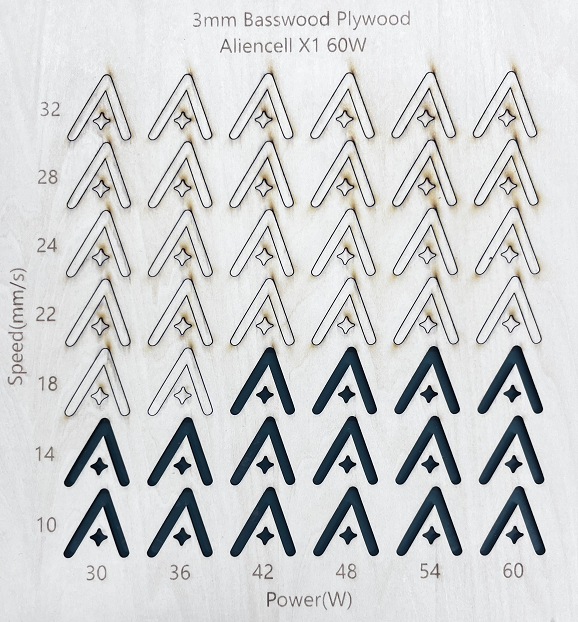

| Wood | Basswood Plywood | 3mm | 60W | 100% | 18mm/s | / | View Result |

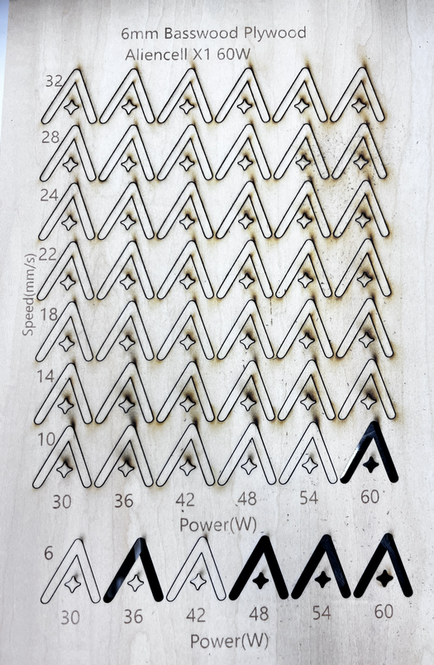

| Wood | Basswood Plywood | 6mm | 60W | 100% | 6mm/s | / | View Result |

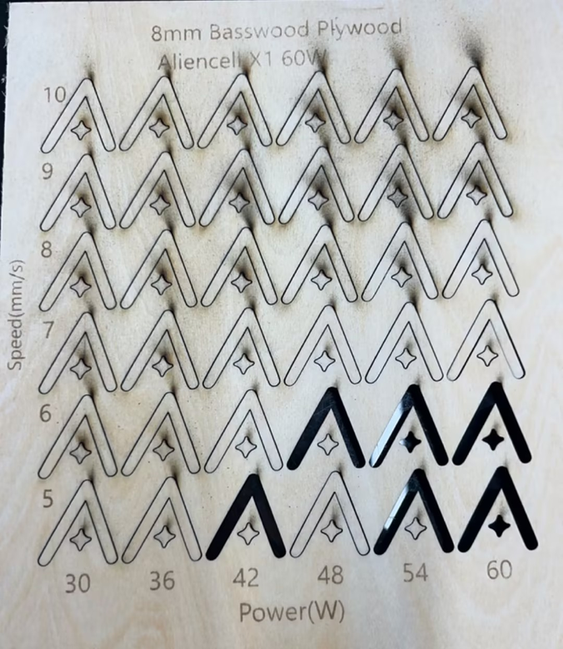

| Wood | Basswood Plywood | 8mm | 60W | 100% | 6mm/s | / | View Result |

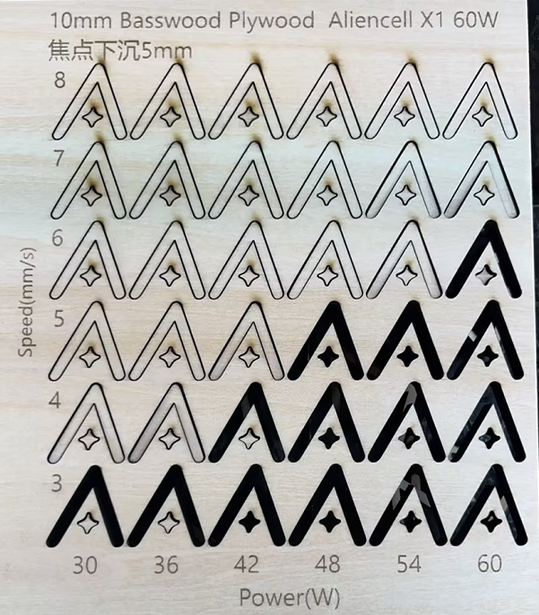

| Wood | Basswood Plywood | 10mm | 60W | 100% | 5mm/s | 5mm | View Result |

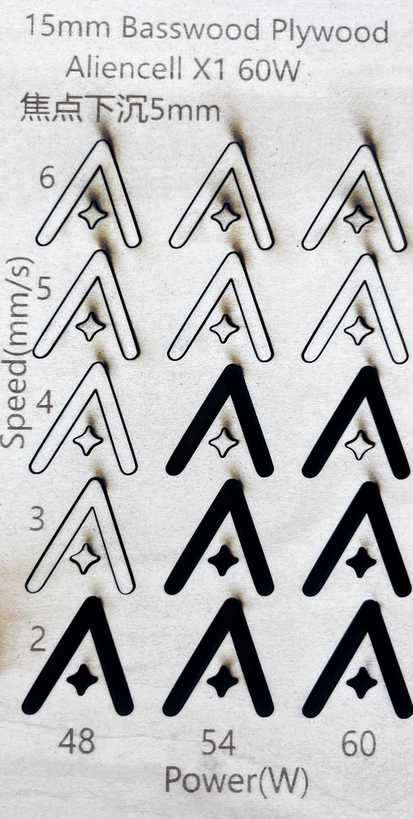

| Wood | Basswood Plywood | 15mm | 60W | 100% | 3mm/s | 5mm | View Result |

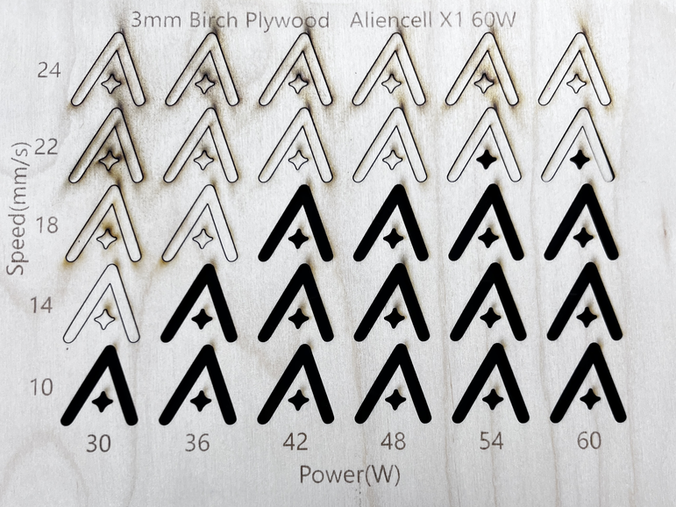

| Wood | Birch Plywood | 3mm | 60W | 100% | 18mm/s | / | View Result |

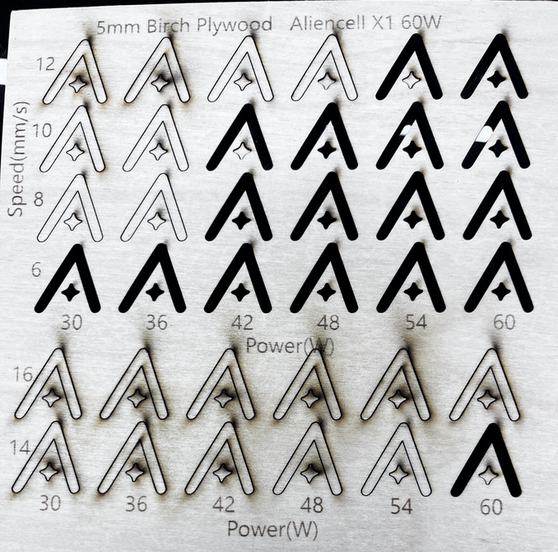

| Wood | Birch Plywood | 5mm | 60W | 100% | 10mm/s | / | View Result |

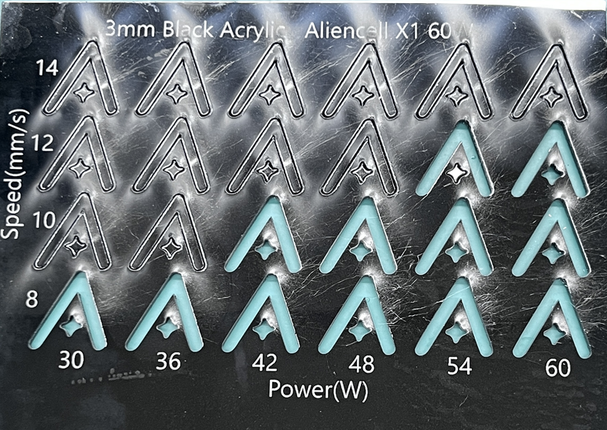

| Acrylic | Black Acrylic | 3mm | 60W | 100% | 10mm/s | / | View Result |

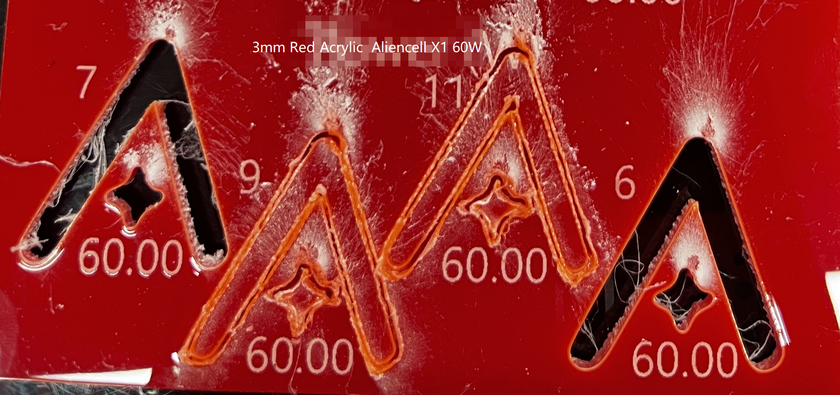

| Acrylic | Red Acrylic | 3mm | 60W | 100% | 6mm/s | / | View Result |

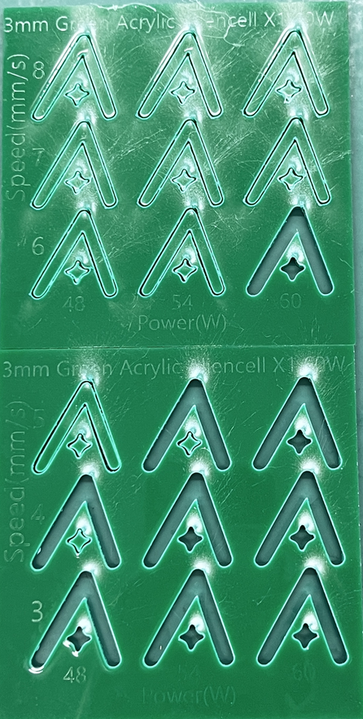

| Acrylic | Green Acrylic | 3mm | 60W | 100% | 4mm/s | / | View Result |

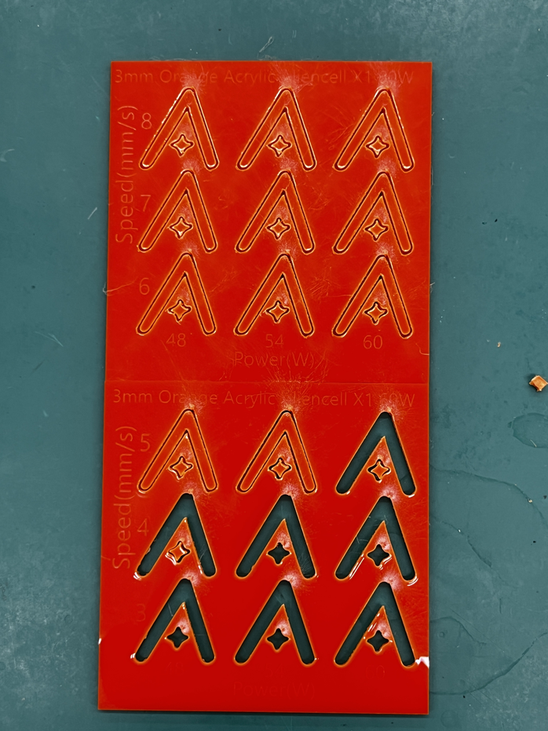

| Acrylic | Orange Acrylic | 3mm | 60W | 100% | 4mm/s | / | View Result |

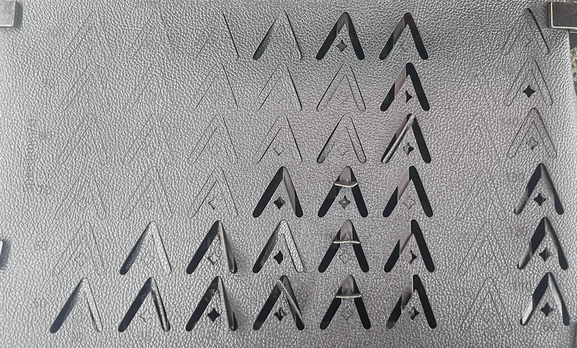

| Leather | PVC Leather | 1mm | 60W | 100% | 120mm/s | / | View Result |

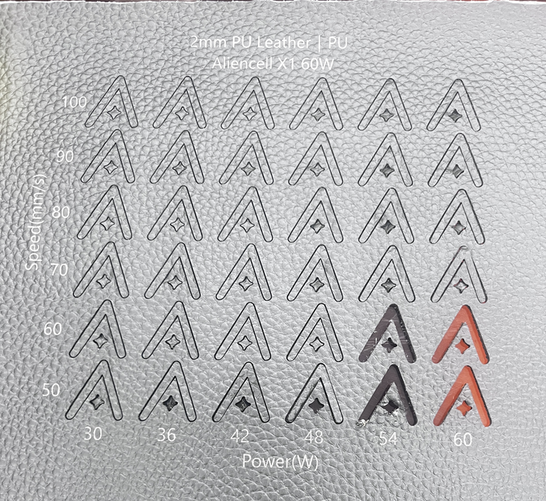

| Leather | PU Leather | 2mm | 60W | 100% | 60mm/s | / | View Result |

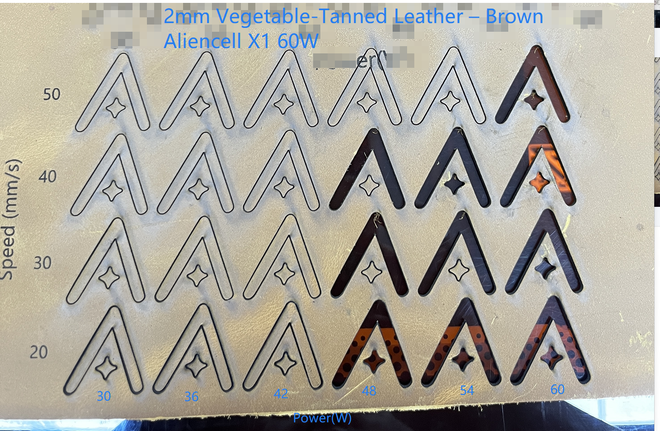

| Leather | Vegetable-Tanned Leather – Brown | 2mm | 60W | 100% | 40mm/s | / | View Result |

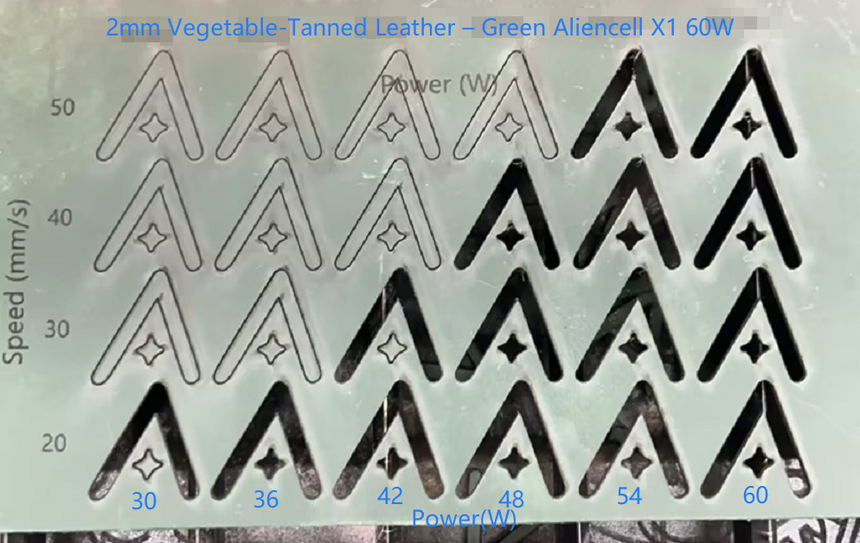

| Leather | Vegetable-Tanned Leather – Green | 2mm | 60W | 100% | 40mm/s | / | View Result |

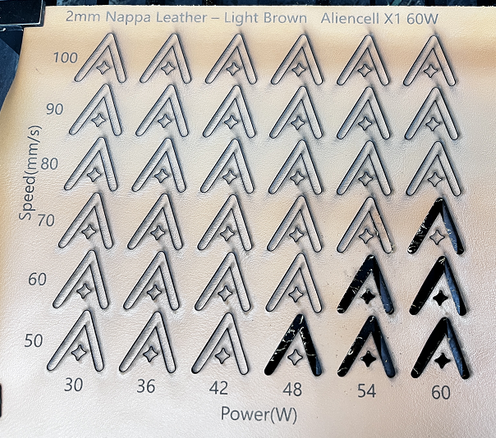

| Leather | Nappa Leather – Light Brown | 2mm | 60W | 100% | 60mm/s | / | View Result |

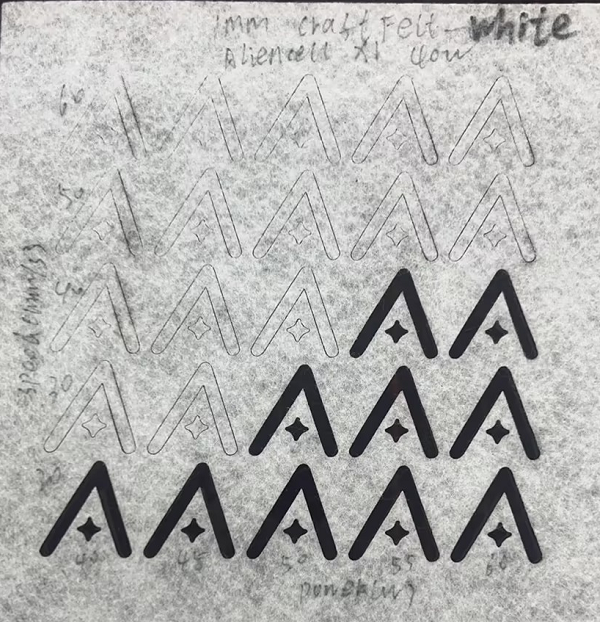

| Fabric & Soft Materials | Craft Felt – White | 1mm | 60W | 100% | 30mm/s | / | View Result |

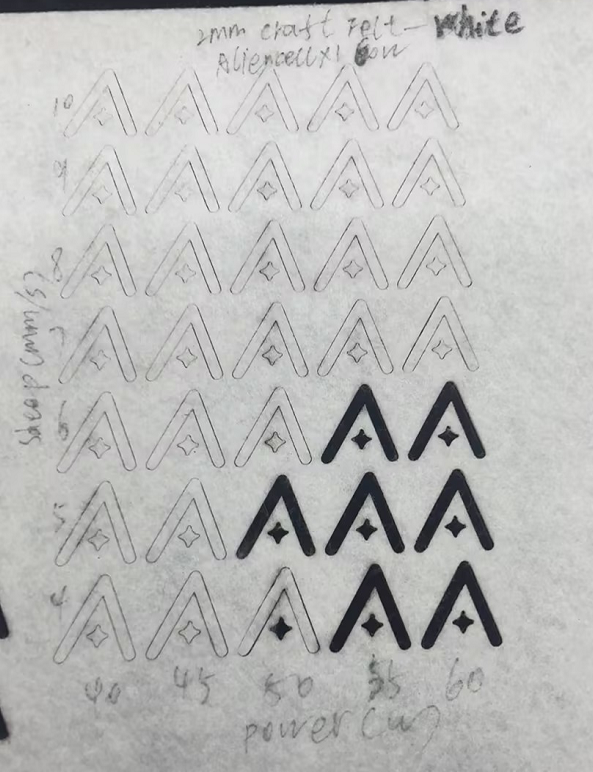

| Fabric & Soft Materials | Craft Felt – White | 2mm | 60W | 100% | 5mm/s | / | View Result |

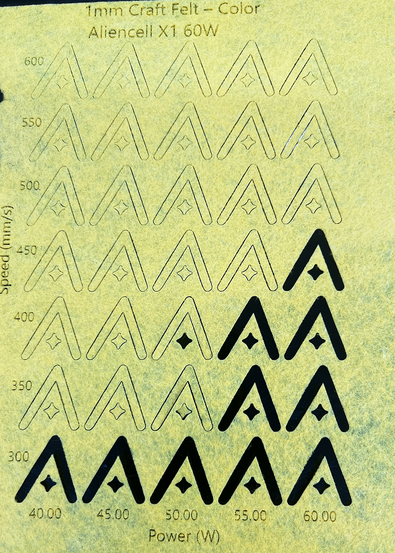

| Fabric & Soft Materials | Craft Felt – Color | 1mm | 60W | 100% | 400mm/s | / | View Result |

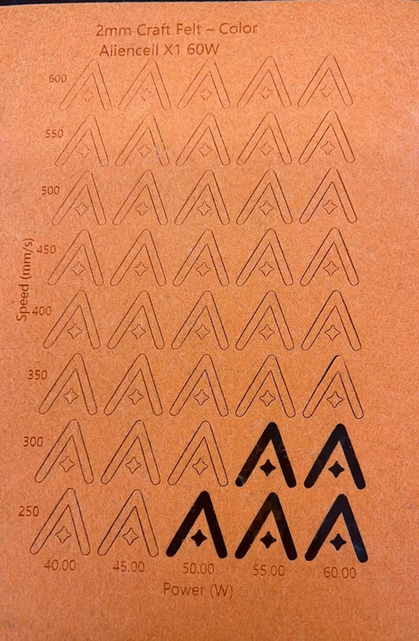

| Fabric & Soft Materials | Craft Felt – Color | 2mm | 60W | 100% | 250mm/s | / | View Result |

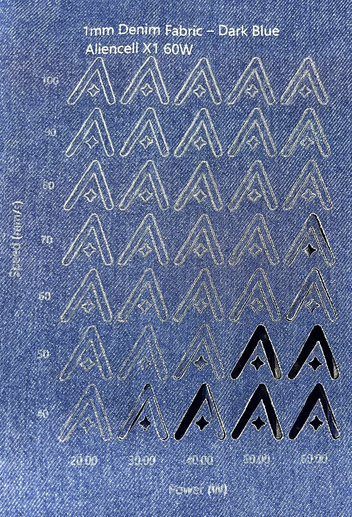

| Fabric & Soft Materials | Denim Fabric – Dark Blue | 1mm | 60W | 100% | 50mm/s | / | View Result |

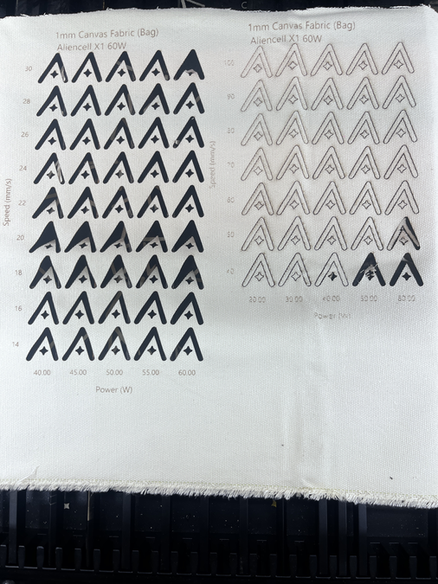

| Fabric & Soft Materials | Canvas Fabric (Bag) | 1mm | 60W | 100% | 40mm/s | / | View Result |

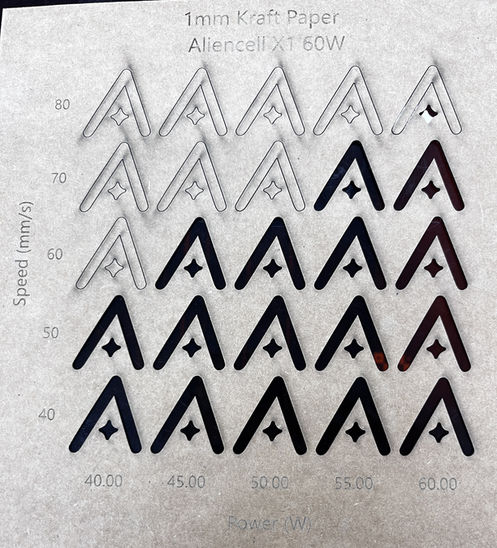

| Paper | Kraft Paper | 1mm | 60W | 100% | 60mm/s | / | View Result |
| Paper | Corrugated Paper | 3mm | 60W | 100% | 90mm/s | / | View Result |

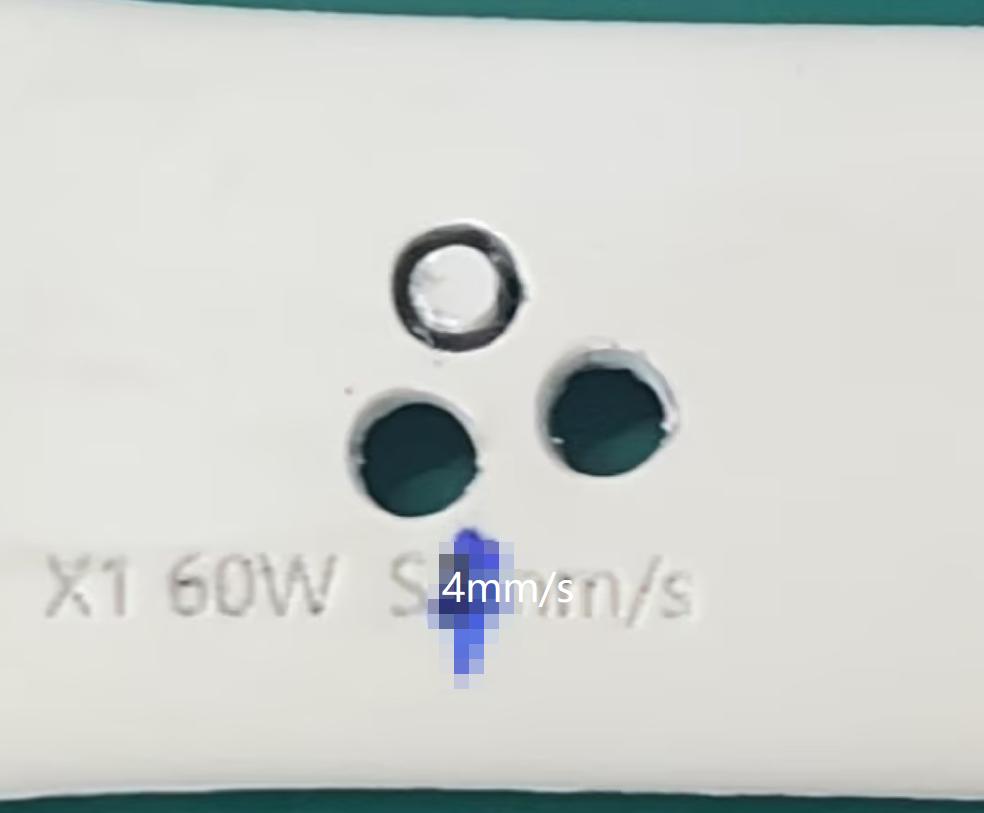

| Others | Silicone Watch Strap | 1mm | 60W | 100% | 4mm/s | / | View Result |
