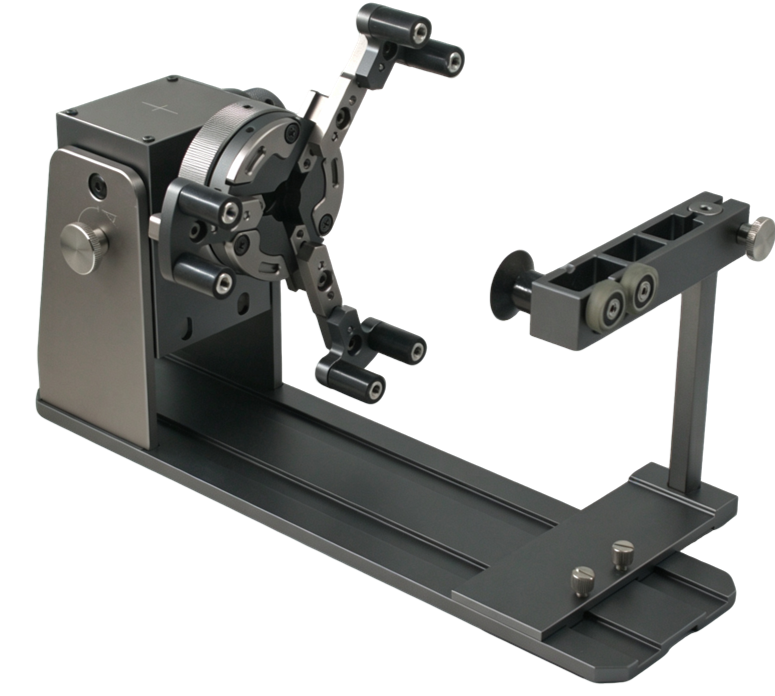

The Aliencell Rotary secures and synchronously rotates cylindrical, conical, spherical, and other irregularly shaped objects, working with your laser engraver to produce crisp, continuous wraparound engravings on cups, bottles, rings, pen barrels, and other curved surfaces. Swap the jaw tips to accommodate workpieces of various diameters and shapes.
Purchase: To purchase the Rotary accessory, please visit the Aliencell Official Shop for the latest inventory and pricing information.
¶ 1. Quick Start
- Safety and Usage Notes (Must Read)
- Know Your Rotary
- Installation and Connection
- Using the Rotary
- Troubleshooting
¶ 2. Specifications
¶ 2.1 Specifications
| No. | Item | Specification |
|---|---|---|
| 1 | Type | Roller-style rotary |
| 2 | Connection | Built-in rotary port on the host (no external power supply required) |
| 3 | Compatible Models | X1 series |
| 4 | Supported Objects | Cylinders, wine glasses, mugs, spheres, rings, cones, etc. |
| 5 | Clamping Range | 5 – 143 mm (0.20 – 5.63 in) |
| 6 | Max. Engravable Surface Diameter | 200 mm (7.87 in) — at positions away from the jaw chuck |
| 7 | Max. Load | 5 kg (11 lb) |
| 8 | Angle Adjustment Range | -5° – 90° (pending final confirmation) |
| 9 | Functions | Full-surface (360°) engraving Ring engraving Adjustable height compensation for tapered / conical objects |
| 10 | Interface | Dedicated rotary port ×1 |
| 11 | Power Input | Powered by the host (built-in power module) |
| 12 | Software Support | AliencellSpace / LightBurn (pending final confirmation) |
| 13 | Housing Material | Metal |
| 14 | Supported Materials | 300+ |
| 15 | Certifications | CE, RoHS, EU Authorized Representative (EU Rep) |
| 16 | Product Dimensions (L×W×H) | 320 × 107 × 162 mm (12.60 × 4.21 × 6.38 in) |
| 17 | Net Weight | 1.54 kg (3.4 lb) |
| 18 | Gross Weight | 1.9 kg (4.19 lb) |
¶ 3. Parts List
| No. | Image | Name |
|---|---|---|
1 |
 |

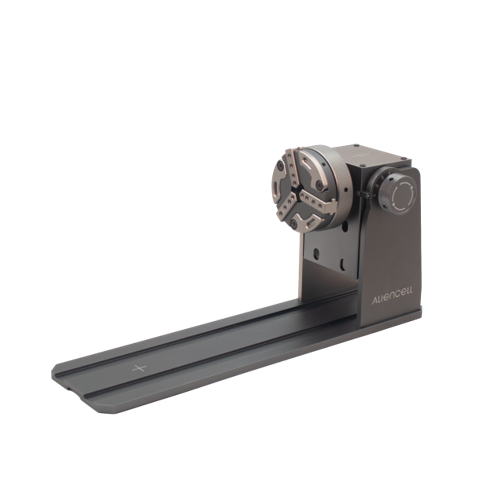

Drive Module |
2 |
 |

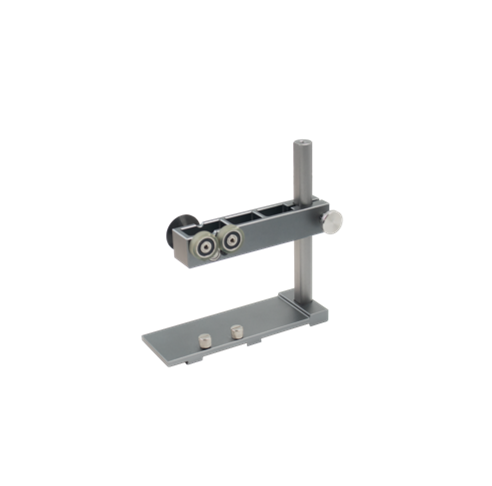

Tailstock Support |
3 |
 |
Stud Components |
4 |
 |

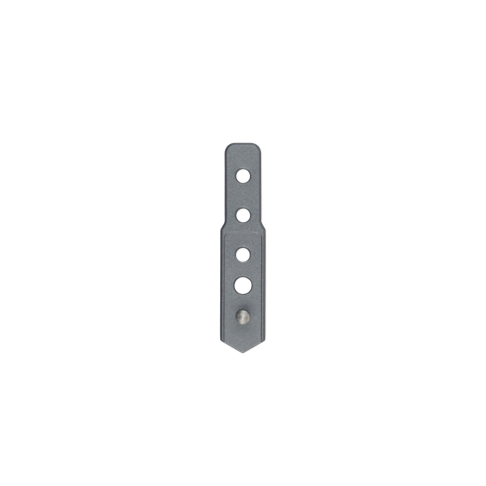

Extended Jaws |
5 |
 |

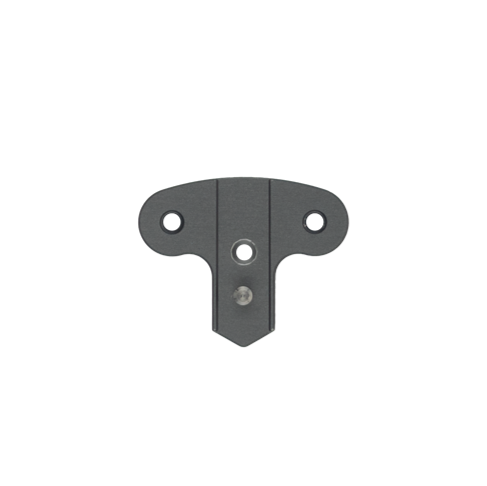

T-Jaw |
6 |
 |

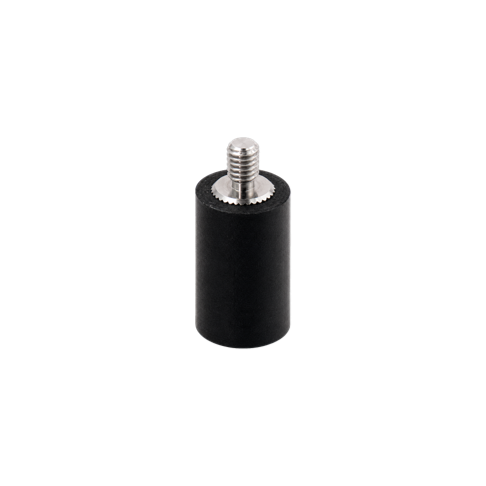

Cylindrical Jaw |
7 |
 |

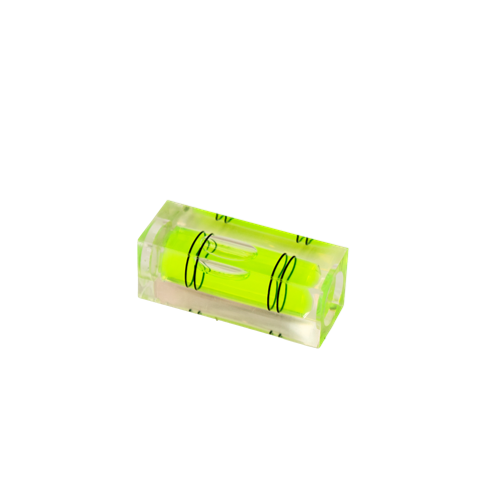

Bubble Level |
8 |
 |

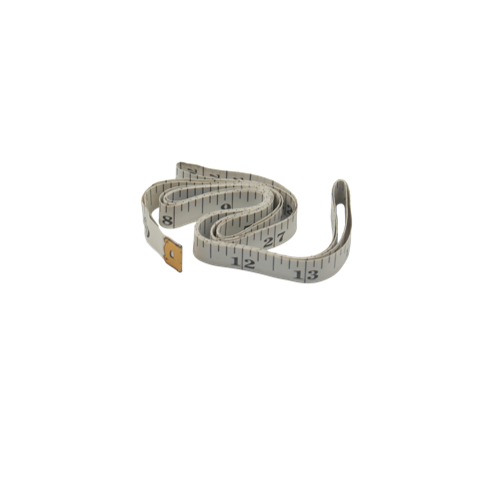

Tape Measure |
9 |
 |

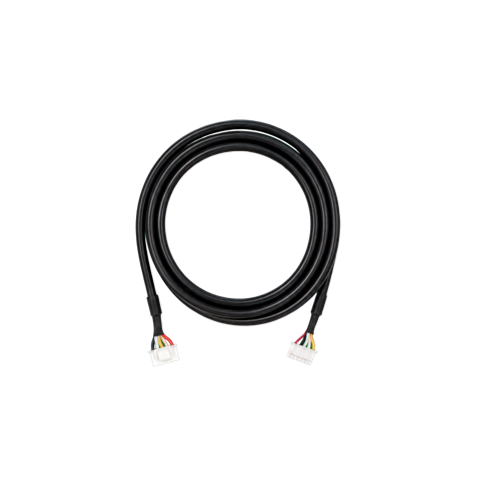

Rotary Cable |
10 |
 |

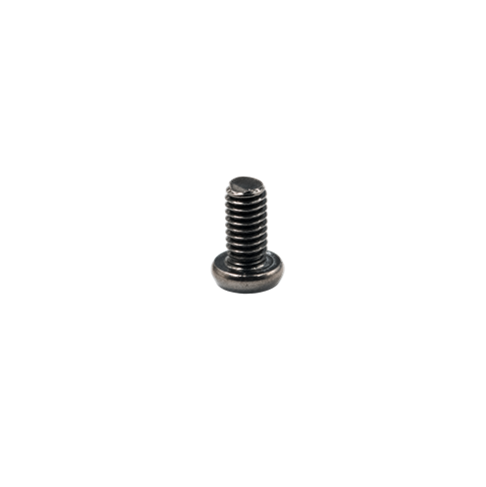

Screw |
11 |
 |
Hex Key |
Tips: After receiving your order, check all parts against the list above. If any item is missing or damaged, stop the installation and contact after-sales support.
